1-1393641-1

Active

TE Connectivity AMP Connectors

CONN DIN RCPT 32POS

Deep-Dive with AI

Search across all available documentation for this part.

1-1393641-1

Active

TE Connectivity AMP Connectors

CONN DIN RCPT 32POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.75
		10	$ 4.88
		25	$ 4.58
		60	$ 4.30
		120	$ 4.10
		300	$ 3.84

Description

General part information

1393641 Series

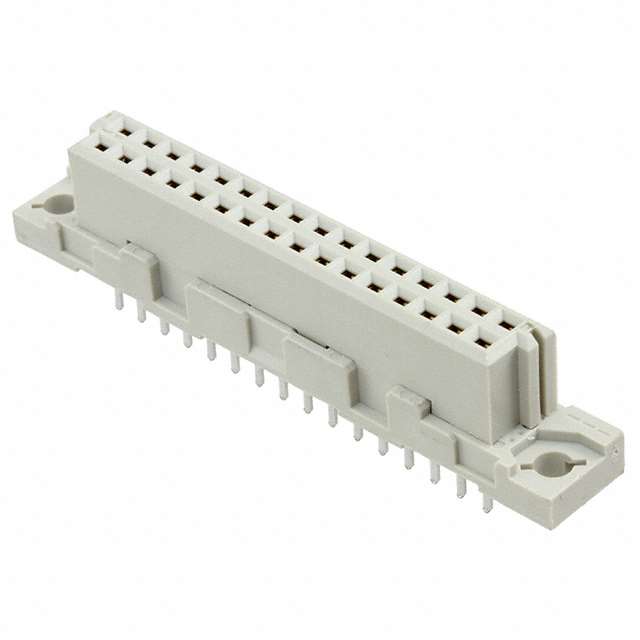

32 Position Din Connector Receptacle, Female Sockets Gold or Gold-Palladium Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1393641-1	1393641 Series

Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold, Gold-Palladium	Gold, Gold-Palladium
Level, Class	-	1
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	4 - 96
Number of Positions Loaded	All	All
Number of Positions Loaded	-	12 - 64
Number of Rows	2	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Style	B	C, B, M
Termination	Solder	Solder

1393641 Series

CONN DIN RCPT 96POS PCB GOLD

Part	Material Flammability Rating	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Contact Finish	Number of Positions Loaded	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Style	Material - Insulation	Number of Positions Loaded	Level, Class
TE Connectivity AMP Connectors 2-1393641-7	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
TE Connectivity AMP Connectors 3-1393641-1	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
TE Connectivity AMP Connectors 1-1393641-1	UL94 V-0	2.54 mm	0.1 in	Through Hole	2	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder		B	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
TE Connectivity AMP Connectors 3-1393641-5	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium		Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	64
TE Connectivity AMP Connectors 6-1393641-3	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium		Receptacle, Female Sockets	-55 °C	125 °C	Solder	4, 60	M	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	12	1
TE Connectivity AMP Connectors 3-1393641-7	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
