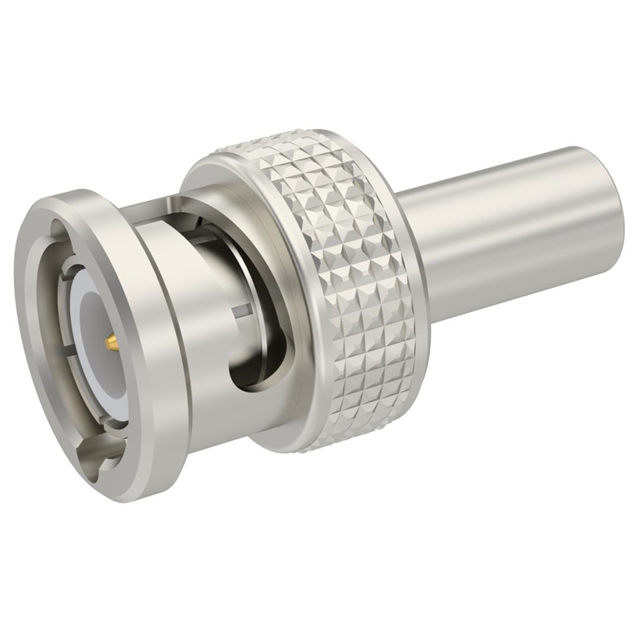

R141083000

Active

Radiall USA, Inc.

BNC M STR CR 5/50D C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC M STR CR 5/50D C100

Technical Specifications

Parameters and characteristics for this part

Specification	R141083000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-142, 400, 223
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Mounting Type	Housing Color	Cable Group	Frequency - Max [Max]	Connector Style	Dielectric Material	Body Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Mating Cycles	Fastening Type	Center Contact Material	Center Contact Plating	Number of Ports	Contact Termination	Connector Type	Impedance
Radiall USA, Inc. R141083000	Crimp	Free Hanging (In-Line)	Silver	223 400 RG-142	4 GHz	BNC	Polytetrafluoroethylene (PTFE)	Brass	500 V	-65 ░C	165 °C	Nickel	500	Bayonet Lock	Brass	Gold	1	Crimp	Male Pin Plug	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
