3PLBR3L-024

Active

Altech Corporation

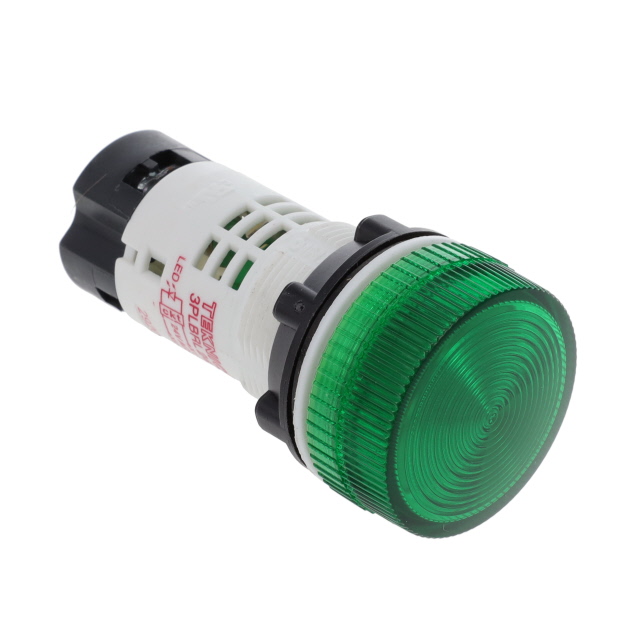

PILOT LIGHT 22MM INTEGRAL LED GR

Search across all available documentation for this part.

Active

Altech Corporation

PILOT LIGHT 22MM INTEGRAL LED GR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green 24V 20mA Screw Terminal

Technical documentation and resources

No documents available

Specification	3PLBR3L-024	3PLBR3 Series

Ingress Protection	IP65	IP65
Lamp Color	Green	Green
Lens Color	Green	Green
Lens Size [diameter]	29.8 mm	29.8 mm
Lens Style	Round with Domed Top	Round with Domed Top
Panel Cutout Dimensions	22 mm	22 mm
Panel Cutout Dimensions [custom]	0.87 in	0.87 in
Panel Cutout Shape	Round	Round
Ratings	AC/DC	AC, AC/DC
Termination Style	Screw Terminal	Screw Terminal
Type	LED	LED
Voltage	24 V	24 - 230 V

Part	Ingress Protection	Lamp Color	Type	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions [custom]	Lens Color	Termination Style	Lens Size [diameter]	Voltage	Lens Style	Ratings
Altech Corporation 3PLBR3L-110	IP65	Green	LED	Round	22 mm	0.87 in	Green	Screw Terminal	29.8 mm	110 V	Round with Domed Top	AC
Altech Corporation 3PLBR3L-048	IP65	Green	LED	Round	22 mm	0.87 in	Green	Screw Terminal	29.8 mm	48 V	Round with Domed Top	AC/DC
Altech Corporation 3PLBR3L-230	IP65	Green	LED	Round	22 mm	0.87 in	Green	Screw Terminal	29.8 mm	230 V	Round with Domed Top	AC
Altech Corporation 3PLBR3L-024	IP65	Green	LED	Round	22 mm	0.87 in	Green	Screw Terminal	29.8 mm	24 V	Round with Domed Top	AC/DC
