GRF4.0419.013.C

Active

SCHURTER Inc.

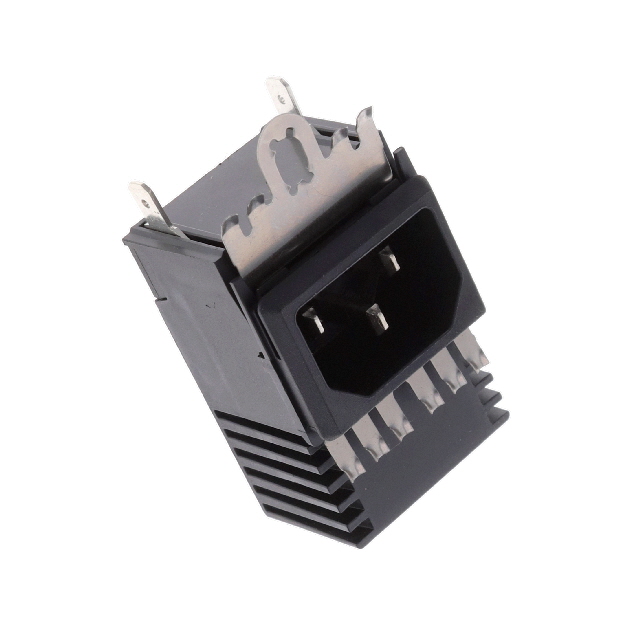

FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 15 A, 250 VAC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 15 A, 250 VAC

Technical Specifications

Parameters and characteristics for this part

Specification	GRF4.0419.013.C

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	20.8 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect

FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 15 A, 250 VAC

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating	Features	Filter Type	Current Rating - Filter	Accomodates a Fuse	Connector Type	Approval Agency	Connector Style	Termination	Termination	Ingress Protection	Panel Thickness [custom]	Panel Thickness [custom]	Current Rating - Appliance Inlet	Mounting Type
SCHURTER Inc. GRF4.0419.013.C	30.5 mm	20.8 mm	UL94 V-0	Shielded	Filtered (EMI, RFI) - Commercial	10 A		Male Blades, Receptacle	CSA, UL, VDE	IEC 320-C14	0.189 ", 4.8 mm	Quick Connect	IP40	0.059 in	1.5 mm	10 A	Panel Mount, Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
