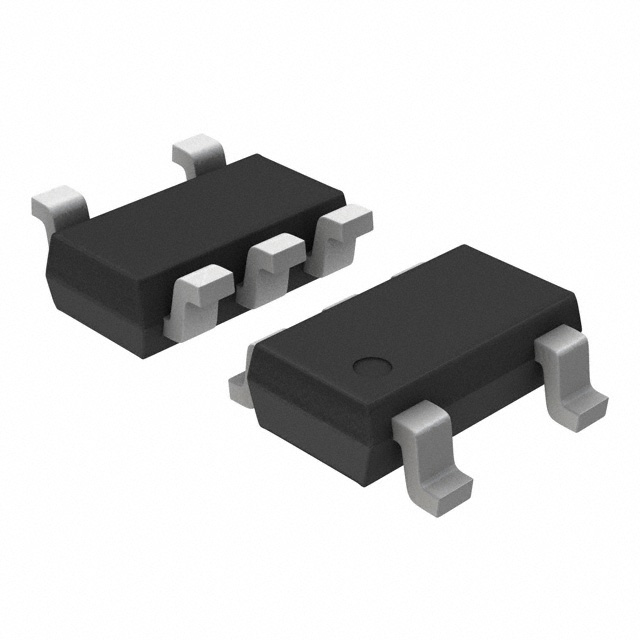

ESDA14V2SC5Y - SOT-23-5 Thin, TSOT-23-5

ESDA14V2SC5Y

Active
STMicroelectronics

AUTOMOTIVE QUAD-LINE TVS FOR ESD PROTECTION

Deep-Dive with AI

Search across all available documentation for this part.

Documents+27
ESDA14V2SC5Y - SOT-23-5 Thin, TSOT-23-5

ESDA14V2SC5Y

Active
STMicroelectronics

AUTOMOTIVE QUAD-LINE TVS FOR ESD PROTECTION

Deep-Dive with AI

Documents+27

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationESDA14V2SC5YESDA14V2 Series
Applications-General Purpose
Bidirectional Channels-4
Current - Peak Pulse (10/1000µs)-14 A
Grade-Automotive
Mounting Type-Surface Mount
null-
Operating Temperature--40 °C
Operating Temperature-125 - 150 °C
Package / Case-SOT-23-6, SC-74A, SOT-753, SOT-23-5 Thin, TSOT-23-5, SOT-666, SOT-563
Power - Peak Pulse-50 - 300 W
Power Line Protection-False
Qualification-AEC-Q101
Supplier Device Package-SOT-23-6, SOT-23-5, SOT-666
Type-Zener
Unidirectional Channels-4
Voltage - Breakdown (Min)-14.2 V
Voltage - Reverse Standoff (Typ)-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.45
10$ 0.35
100$ 0.21
500$ 0.20
1000$ 0.13
Digi-Reel® 1$ 0.45
10$ 0.35
100$ 0.21
500$ 0.20
1000$ 0.13
Tape & Reel (TR) 3000$ 0.12
6000$ 0.12
9000$ 0.11
30000$ 0.10
75000$ 0.10
NewarkEach (Supplied on Cut Tape) 1$ 0.34
10$ 0.23
25$ 0.20
50$ 0.18
100$ 0.15
250$ 0.14
500$ 0.13
1000$ 0.11

ESDA14V2 Series

Quad Transil™ array for ESD protection

PartMounting TypeVoltage - Reverse Standoff (Typ)Supplier Device PackageUnidirectional Channels [custom]Operating Temperature [Min]Operating Temperature [Max]Power Line ProtectionVoltage - Breakdown (Min) [Min]Power - Peak PulsePackage / CaseTypeApplicationsGradeCurrent - Peak Pulse (10/1000µs)QualificationBidirectional Channels [custom]
STMicroelectronics
ESDA14V2BP6
STMicroelectronics
ESDA14V2SC5Y
STMicroelectronics
ESDA14V2SC6
STMicroelectronics
ESDA14V2SC6
Surface Mount
12 V
SOT-23-6
4
-40 °C
125 °C
14.2 V
300 W
SOT-23-6
Zener
General Purpose
STMicroelectronics
ESDA14V2SC6
STMicroelectronics
ESDA14V2SC5
Surface Mount
12 V
SOT-23-5
4
-40 °C
125 °C
14.2 V
300 W
SC-74A, SOT-753
Zener
General Purpose
STMicroelectronics
ESDA14V2SC6
STMicroelectronics
ESDA14V2SC5
STMicroelectronics
ESDA14V2BP6
STMicroelectronics
ESDA14V2SC5Y

Description

General part information

ESDA14V2 Series

The ESDAxxSC5 and ESDAxxSC6 are monolithic voltage suppressors designed to protect components which are connected to data and transmission lines against ESD.

They clamp the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transient.
