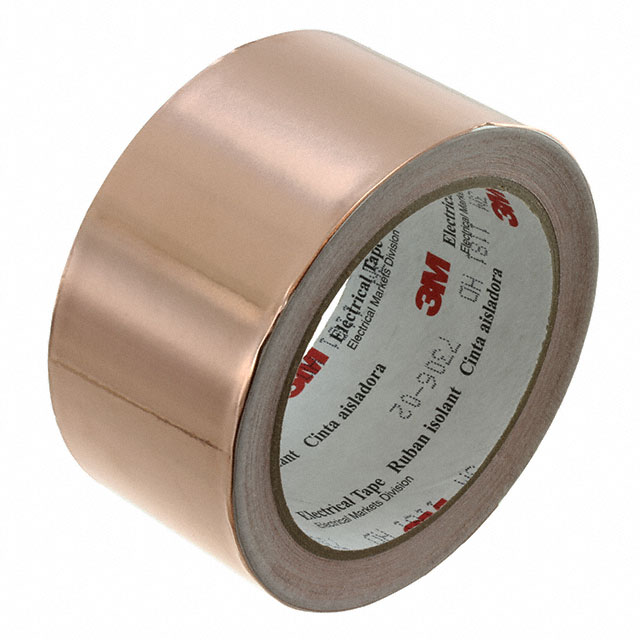

1181 2" X 18 YDS

Active

RF EMI SHIELDING TAPE 54' X 2"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher Datasheet +1

1181 2" X 18 YDS

Active

RF EMI SHIELDING TAPE 54' X 2"

Deep-Dive with AI

DocumentsDate Code Decipher Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 189.39
		10	$ 157.81
		25	$ 156.28

Description

General part information

1181 Series

RF EMI Shielding Tape - Copper Foil Acrylic, Conductive 2.000" (50.80mm) X 54.000' (16.50m) X 0.003" (0.07mm)

Documents

Technical documentation and resources

Date Code Decipher

Datasheet

1181 Series REACH Declaration

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1181 2" X 18 YDS	1181 Series

Adhesive	Acrylic, Conductive	Acrylic, Conductive, Conductive, Single Sided, Conductive Acrylic
Backing, Carrier	-	Copper Foil
Color	-	Natural
Length	16.5 m	16.5 - 254 m
Length	54 ft	10 - 180 ft
Length	-	18 - 60 yd
Material	Copper Foil	Copper Foil
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	-	Rectangular
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	-	Copper Foil
Thickness - Backing, Carrier	-	0.0014 in
Thickness - Backing, Carrier	-	1.4 mils
Thickness - Backing, Carrier	-	0.035 mm
Thickness - Overall	0.003 "	0.003 "
Thickness - Overall	0.07 mm	0.07 mm
Type	Shielding Tape	Shielding Tape, Safety Glasses, Shielding Sheet
Usage	-	EMI Shielding
Width	-	0.75 - 195 mm
Width	-	9 - 152.4 mm
Width	-	0.35 - 6 in
Width	-	0.25 - 7.7 "
Width	-	0.5 - 19.05 "
Width [x]	2 in	0.24 - 23 in
Width [x]	50.8 mm	6.1 - 584.2 mm

1181 Series

RF EMI SHIELDING TAPE 54' X 2"

Part	Length	Length	Type	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Material	Shelf Life Start	Thickness - Overall	Thickness - Overall	Width [x]	Width [x]	Adhesive	Width	Color	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Length	Backing, Carrier	Width [y]	Width [y]	Width
3M 1181 2" X 18 YDS	16.5 m	54 ft	Shielding Tape	60 Months	-40 °C	130 °C	27 °C, 80 °F	10 °C	Copper Foil	Date of Manufacture	0.003 "	0.07 mm	2 in	50.8 mm	Acrylic, Conductive
3M 1181 X 1.5"	16.5 m	54 ft		60 Months	-40 °C	130 °C	27 °C, 80 °F	10 °C	Copper Foil	Date of Manufacture	0.003 "	0.07 mm	1.5 in		Conductive, Single Sided	38.1 mm
3M 1181 6MMX16,5MMC36	16.5 m	54 ft		60 Months						Date of Manufacture			0.24 in	6.1 mm	Conductive Acrylic		Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil
3M 1181 12MMX165MMC19	16.5 m	54 ft		60 Months						Date of Manufacture			0.47 in	12 mm	Conductive Acrylic		Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil
3M 11815-00000-20			Safety Glasses
3M 11816-00000-20			Safety Glasses
3M 1181 X 6"	16.5 m	54 ft	Shielding Tape	60 Months	-40 °C	130 °C	27 °C, 80 °F	10 °C	Copper Foil	Date of Manufacture	0.003 "	0.07 mm			Conductive, Single Sided										152.4 mm	6 in
3M 1181 50MMX16,5MMC4	16.5 m	54 ft		60 Months						Date of Manufacture					Conductive Acrylic		Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil	50 mm	1.97 in
3M 1181 25MMX16,5MMC9	16.5 m	54 ft		60 Months						Date of Manufacture					Conductive Acrylic	25 mm	Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil			0.98 "
3M 1181 23"X18YD	16.5 m	54 ft		60 Months						Date of Manufacture			23 in	584.2 mm	Conductive Acrylic		Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil
