JWL11BA1A-A

Active

NKK Switches

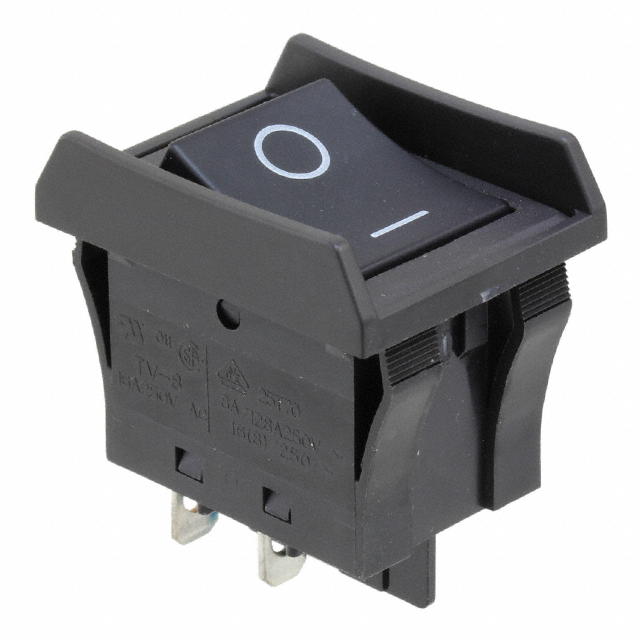

HIGH INRUSH 10 & 16 AMP ROCKER; STATUS: ACTIVE; POLES: SPST; CIRCUITS: ON-OFF; CURRENT RATING: 16A (AC); RATING (AC): 125V; ACTUATOR TYPE: CONCAVE (CURVED); ACTUATOR CAP COLOR: BLACK; ACTUATOR MARKING: O I; MOUNTING TYPE: PANEL MOUNT, SNAP-IN; TERMINATION STYLE: SOLDER, QUICK CONNECT - 0.187" (4.7MM); INGRESS PROTECTION: DUST PROOF; FEATURES: EPOXY SEALED TERMINALS; PANEL CUTOUT DIMENSIONS: RECTANGULAR - 29.50MM X 20.50MM; RATING: 16; ILLUMINATION: NON-ILLUMINATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JWL11BA1A-A

Active

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWL11BA1A-A

Actuator Marking	O I
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	29.5 mm
Panel Cutout Dimensions [y]	20.5 mm
Switch Function	On-Off
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Voltage Rating - AC	125 V

JWL11B Series

Part	Ingress Protection	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Electrical Life	Actuator Marking	Actuator Type	Termination Style	Termination Style	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Color - Actuator/Cap	Voltage Rating - AC	Current Rating (Amps)	Circuit	Approval Agency
NKK Switches JWL11BA1A-A	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	O I	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals	Black	125 V	16 A	SPST	CSA UL VDE
NKK Switches JWL11BC2A-A	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	O -	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals	Red	125 V	16 A	SPST	CSA UL VDE
NKK Switches JWL11BHA-H	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	No Marking	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals		125 V	16 A	SPST	CSA UL VDE
NKK Switches JWL11BCA-H	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	No Marking	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals	Red	125 V	16 A	SPST	CSA UL VDE
NKK Switches JWL11BA2A-B	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	O -	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals	Black	125 V	16 A	SPST	CSA UL VDE
NKK Switches JWL11BAA-H	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	No Marking	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals	Black	125 V	16 A	SPST	CSA UL VDE
NKK Switches JWL11BC1A-A	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	O I	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals	Red	125 V	16 A	SPST	CSA UL VDE
NKK Switches JWL11BCA-A	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	No Marking	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals	Red	125 V	16 A	SPST	CSA UL VDE
NKK Switches JWL11BHA-A	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	No Marking	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals		125 V	16 A	SPST	CSA UL VDE
NKK Switches JWL11BA2A-H	Dust Proof	25000 Steps	70 °C	-25 °C	On-Off	25000 Steps	O -	Concave (Curved)	Quick Connect Solder	0.187 in 4.7 mm	Panel Mount Snap-In	29.5 mm	20.5 mm	Epoxy Sealed Terminals	Black	125 V	16 A	SPST	CSA UL VDE
