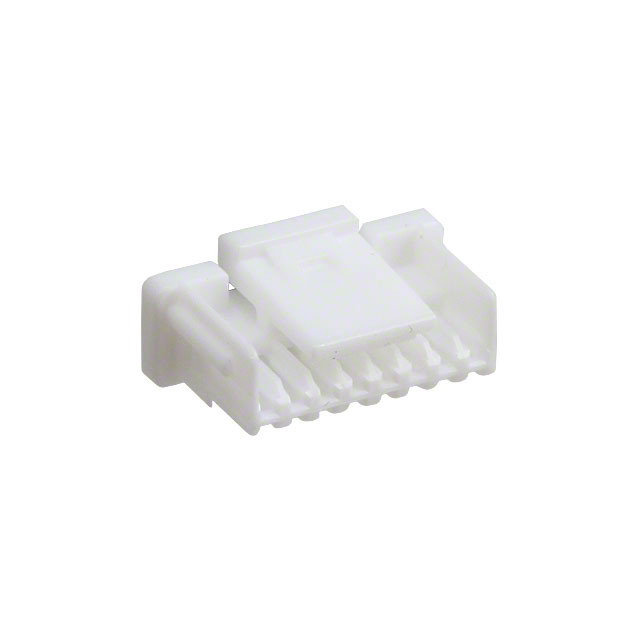

NSHR-08V-S

Active

JST Sales America Inc.

CONN RCPT HSG 8POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 8POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	NSHR-08V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Pitch [x]	Pitch [x]	Insulation Material	Color	Connector Type	Number of Rows	Number of Positions	Contact Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Contact Termination
JST Sales America Inc. NSHR-08V-S	0.039 in	1 mm	Polybutylene Terephthalate (PBT)	Natural	Receptacle	1	8	Female Socket	Contacts Not Included	-25 °C	85 °C	Latch Lock	Free Hanging (In-Line)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
