LDD-1200 Series

Part	Type	Dimming	Current - Output (Max)	Voltage - Input (Max)	Topology	Number of Outputs	Voltage - Input (Min)	Features	Operating Temperature (Max)	Operating Temperature (Min)	Package Leads	Package Name	Voltage - Output (Min)	Voltage - Output (Max)	Approval Agency	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Efficiency	Mounting Type	Ratings	Termination Style
MEAN WELL USA Inc. LDD-1200LS	Constant Current	Analog PWM	1.2 A	36 V	Buck	1	6 V	Remote On/Off SCP	71 °C	-40 °C	18 Leads	24-SMD Module	2 V	30 V	CE	0.8 in	0.45 in	1.25 in	95 %	Surface Mount
MEAN WELL USA Inc. LDD-1200HW	Constant Current	PWM	1.2 A	52 V	Buck	1	9 V	OTP Remote On/Off SCP	85 °C	-40 °C			2 V	46 V	CE	0.8 in	0.48 in	1.25 in	97 %	Chassis Mount	IP67	Wire Leads

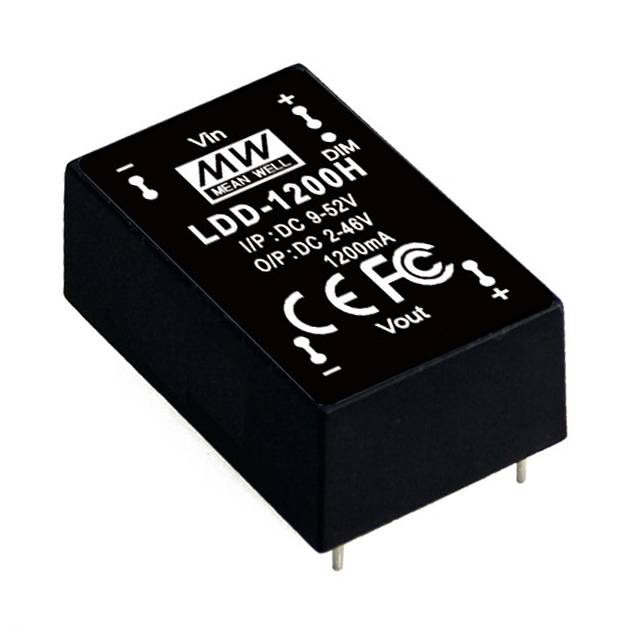

MEAN WELL USA Inc. LDD-1200H	Constant Current	PWM	1.2 A	52 V	Buck	1	9 V	OTP Remote On/Off SCP	85 °C	-40 °C	9 Leads	24-DIP Module	2 V	46 V	CE	0.8 in	0.48 in	1.25 in	97 %	Through Hole
MEAN WELL USA Inc. LDD-1200L	Constant Current	Analog PWM	1.2 A	36 V	Buck	1	6 V	Remote On/Off SCP	71 °C	-40 °C	9 Leads	24-DIP Module	2 V	30 V	CE	0.8 in	0.48 in	1.25 in	95 %	Through Hole
