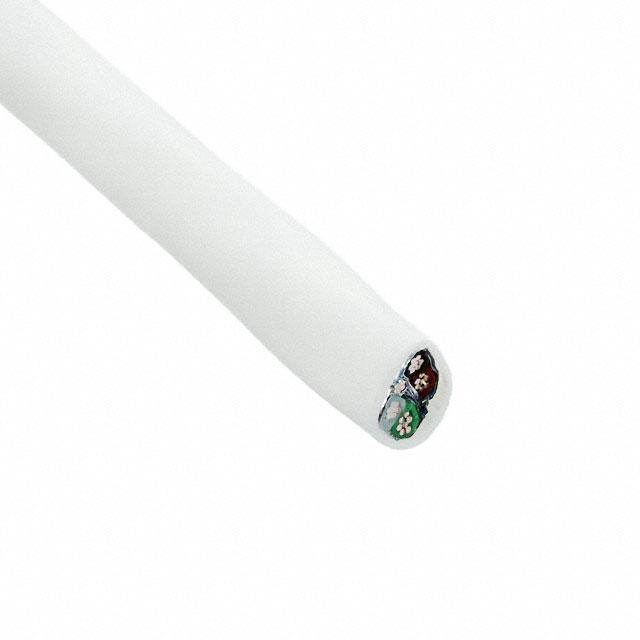

82723 877U500

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG NAT

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG NAT

Technical Specifications

Parameters and characteristics for this part

Specification	82723 877U500

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.153 in
Jacket (Insulation) Diameter [diameter]	3.89 mm
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Natural
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	22 AWG

Part	Conductor Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Wire Gauge	Voltage	Cable Type	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Jacket (Insulation) Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Conductor Insulation	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Ratings	Length	Length
Belden Inc. 82723 877U2000	Copper Tinned	4	0.153 in	3.89 mm	100 %	22 AWG	300 V	Multi-Pair	Aluminum	0.432 mm	0.017 in	Audio Control Instrumentation	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire	7	30 AWG	609.6 m	2000 ft	Fluorinated Ethylene-Propylene (FEP)	Natural	-20 C	90 °C	Foil
Belden Inc. 82723 877U500	Copper Tinned	4	0.153 in	3.89 mm	100 %	22 AWG		Multi-Pair	Aluminum	0.432 mm	0.017 in			Drain Wire	7	30 AWG	152.4 m	500 '	Fluorinated Ethylene-Propylene (FEP)	Natural	-20 C	90 °C	Foil	UL Style CMP
Belden Inc. 82723 8775000	Copper Tinned	4	0.153 in	3.89 mm	100 %	22 AWG	300 V	Multi-Pair	Aluminum	0.432 mm	0.017 in	Audio Control Instrumentation	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire	7	30 AWG			Fluorinated Ethylene-Propylene (FEP)	Natural	-20 C	90 °C	Foil
Belden Inc. 82723 877U1000	Copper Tinned	4	0.153 in	3.89 mm	100 %	22 AWG	300 V	Multi-Pair	Aluminum	0.432 mm	0.017 in	Audio Control Instrumentation	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire	7	30 AWG			Fluorinated Ethylene-Propylene (FEP)	Natural	-20 C	90 °C	Foil		1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Natural 22 AWG Foil 500.0' (152.4m)
