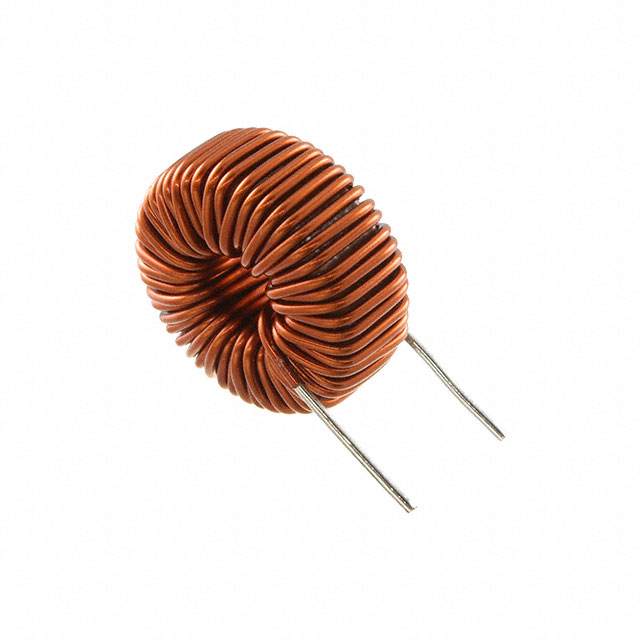

HHBC10-0R8A0107V

Active

KEMET

CMC 107UH 3A 2LN TH

Search across all available documentation for this part.

Active

KEMET

CMC 107UH 3A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Package / Case	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Inductance @ Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Max) [Max]	Height (Max) [Max]	Height (Max) [Max]
KEMET HHBC10-0R8A0068V	Through Hole	No Base Vertical	2 Lead	42.3 mOhm	125 °C	-40 °C	2	68 µH	0.846 "	21.5 mm	3 A
KEMET HHBC10-0R8A0107V	Through Hole	No Base Vertical	2 Lead	53 mOhm	125 °C	-40 °C	2	107 µH	0.866 in	22 mm	3 A	22 mm	0.866 in
KEMET HHBC10-0R8A0038V	Through Hole	No Base Vertical	2 Lead	31.2 mOhm	125 °C	-40 °C	2	38 µH	0.846 "	21.5 mm	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	240	$ 2.40

General part information

107 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 3A DCR 53mOhm
