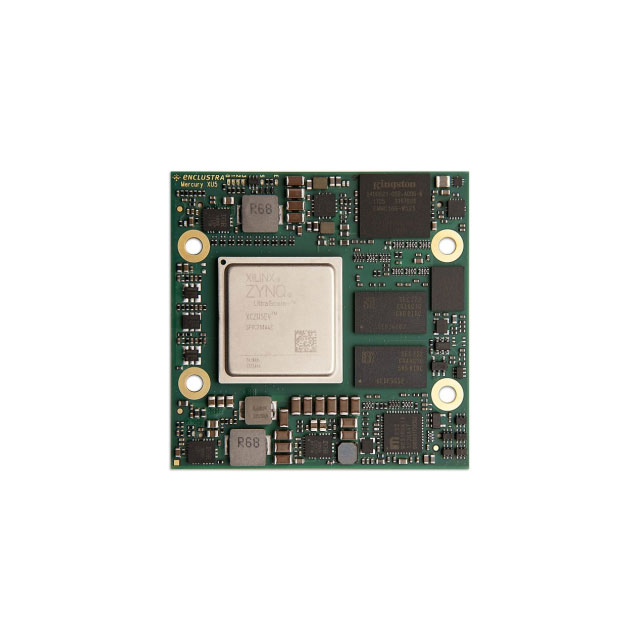

ME-XU5-3EG-2I-D11E-R1.2

Unknown

Enclustra FPGA Solutions

SOM ZYNQ US+ ZU3EG 2GB+1GB PL

Search across all available documentation for this part.

Unknown

Enclustra FPGA Solutions

SOM ZYNQ US+ ZU3EG 2GB+1GB PL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ME-XU5-3EG-2I-D11E-R1.2	ME-XU5 Series

Connector Type	168 Pin	168 Pin
Core Processor	ARM® Dual-Core Cortex-R5, Mali-400MP2 GPU, ARM® Dual-/Quad-Core Cortex-A53	ARM® Dual-Core Cortex-R5, Mali-400MP2 GPU, ARM® Dual-/Quad-Core Cortex-A53
Flash Size	16 GB	16 GB
Module/Board Type	FPGA Core, MPU	FPGA Core, MPU
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
RAM Size	512 MB, 2 GB	1 - 512 GB
Size / Dimension [x]	56 mm	56 mm
Size / Dimension [x]	2.2 in	2.2 in
Size / Dimension [y]	2.13 in	2.13 in
Size / Dimension [y]	54 mm	54 mm
Speed	1.5 GHz	1.5 GHz
Speed	600 MHz	600 MHz

SOM ZYNQ US+ ZU5EV 4GB+1GB PL

Part	Flash Size	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Core Processor	RAM Size	Speed	Speed	Connector Type	Module/Board Type
Enclustra FPGA Solutions ME-XU5-5EV-2I-D12E-R1.2	16 GB	85 °C	-40 °C	2.13 in	56 mm	2.2 in	54 mm	ARM® Dual-/Quad-Core Cortex-A53, ARM® Dual-Core Cortex-R5, Mali-400MP2 GPU	1 GB, 4 GB	1.5 GHz	600 MHz	168 Pin	FPGA Core, MPU
Enclustra FPGA Solutions ME-XU5-3EG-2I-D11E-R1.2	16 GB	85 °C	-40 °C	2.13 in	56 mm	2.2 in	54 mm	ARM® Dual-/Quad-Core Cortex-A53, ARM® Dual-Core Cortex-R5, Mali-400MP2 GPU	2 GB, 512 MB	1.5 GHz	600 MHz	168 Pin	FPGA Core, MPU
Enclustra FPGA Solutions ME-XU5-2EG-1I-D11E-R1.2	16 GB	85 °C	-40 °C	2.13 in	56 mm	2.2 in	54 mm	ARM® Dual-/Quad-Core Cortex-A53, ARM® Dual-Core Cortex-R5, Mali-400MP2 GPU	2 GB, 512 MB	1.5 GHz	600 MHz	168 Pin	FPGA Core, MPU

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 838.35

General part information

- Embedded Module ARM® Dual-/Quad-Core Cortex-A53, ARM® Dual-Core Cortex-R5, Mali-400MP2 GPU 600MHz, 1.5GHz 512MB, 2GB 16GB
