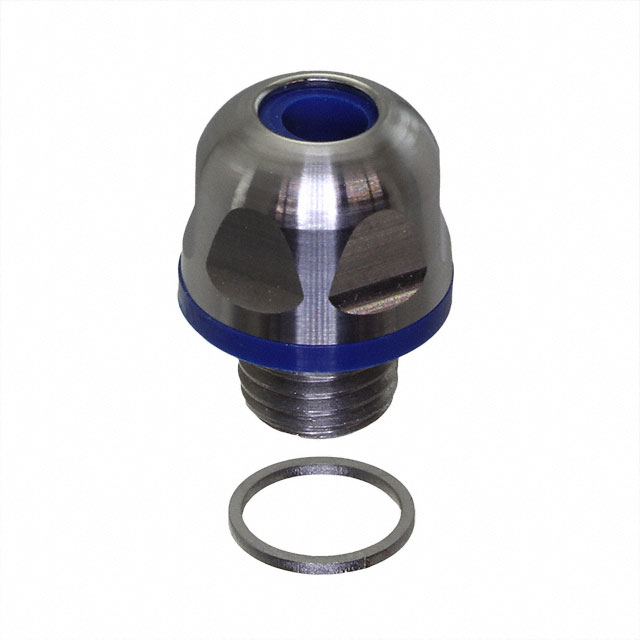

BG212VACP

Active

Pflitsch

CABLE GLAND 5-7MM M12 S STEEL

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 5-7MM M12 S STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	BG212VACP

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	7 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.276 in
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Panel Hole Size	0.472 in
Panel Hole Size	12 mm
Thread Length	7 mm
Thread Length	0.276 in
Thread Size	M12x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Material	Type	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Includes	Panel Hole Size	Panel Hole Size	Ingress Protection	Color	Thread Size
Pflitsch BG212VACP	5 mm	0.197 in	Stainless Steel	Cable Gland	85 °C	-40 °C	7 mm	0.276 in	7 mm	0.276 in	Sealing Ring	0.472 in	12 mm	IP66 IP68 IP69	Silver	M12x1.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M12x1.5 Silver
