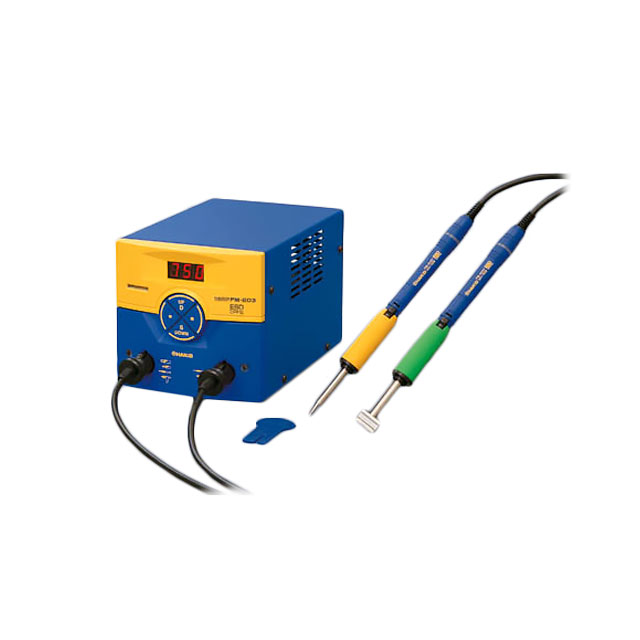

FM203-DP

Active

American Hakko Products, Inc.

SOLDERING STATION 140W 2 CH 120V

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

SOLDERING STATION 140W 2 CH 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 612.68

General part information

SOLDERING STATION 140W 2 CH 120V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FM203-DP	FM203 Series

Base Unit	FM-203	FM-203
Control/Display Type	Digital	Digital
Features	Sleep Mode, LED in Handpiece, ESD Safe, Low Temperature Alarm, Auto Off, Temperature Lockout	Sleep Mode, LED in Handpiece, ESD Safe, Low Temperature Alarm, Auto Off, Temperature Lockout
Includes	Tip Tray, Key Card, Heat Resistant Pad, Iron Holder	Tip Tray, Key Card, Heat Resistant Pad, Iron Holder
Number of Channels [custom]	2	2
Plug Type	NEMA 5-15P	NEMA 5-15P
Supplied Iron, Tweezer, Handle	FM2027-06, FM-2027-03	FM2027-06, FM-2027-03, FM-2030-01, FM-2027-06
Supplied Tips/Nozzles	Sold Separately	Sold Separately
Tip Cleaner	Scouring Pad	Scouring Pad
Type	Soldering	Soldering
Voltage - Input	120 V	120 V
Voltage - Output	24 V	24 V
Wattage	140 W	140 W
Workstand	FH200-01 (2)	FH200-01 (2), FH200-01

SOLDERING STATION 140W 2 CH 120V

Part	Base Unit	Control/Display Type	Plug Type	Features	Workstand	Number of Channels [custom]	Includes	Wattage	Supplied Iron, Tweezer, Handle	Supplied Tips/Nozzles	Type	Tip Cleaner	Voltage - Input	Voltage - Output
American Hakko Products, Inc. FM203-DP	FM-203	Digital	NEMA 5-15P	Auto Off, ESD Safe, LED in Handpiece, Low Temperature Alarm, Sleep Mode, Temperature Lockout	FH200-01 (2)	2	Heat Resistant Pad, Iron Holder, Key Card, Tip Tray	140 W	FM-2027-03, FM2027-06	Sold Separately	Soldering	Scouring Pad	120 V	24 V
American Hakko Products, Inc. FM203-HD	FM-203	Digital	NEMA 5-15P	Auto Off, ESD Safe, LED in Handpiece, Low Temperature Alarm, Sleep Mode, Temperature Lockout	FH200-01	2	Heat Resistant Pad, Iron Holder, Key Card, Tip Tray	140 W	FM-2030-01	Sold Separately	Soldering	Scouring Pad	120 V	24 V
American Hakko Products, Inc. FM203-01	FM-203	Digital	NEMA 5-15P	Auto Off, ESD Safe, LED in Handpiece, Low Temperature Alarm, Sleep Mode, Temperature Lockout	FH200-01	2	Heat Resistant Pad, Iron Holder, Key Card, Tip Tray	140 W	FM-2027-06	Sold Separately	Soldering	Scouring Pad	120 V	24 V
