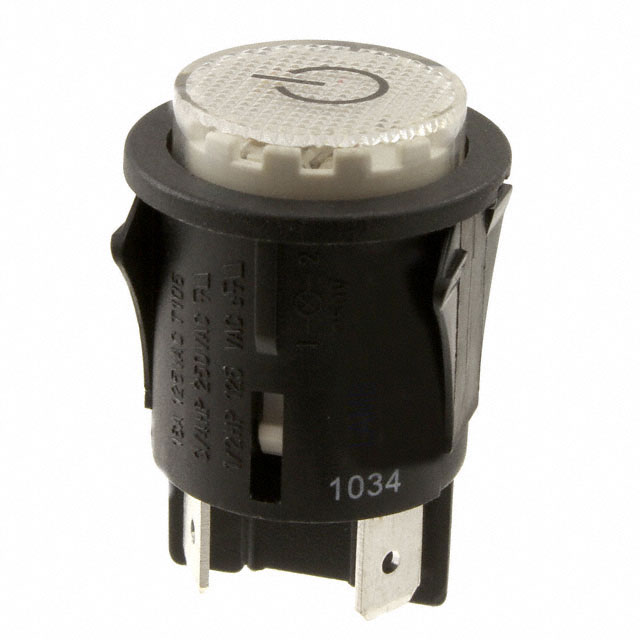

PA5FN11C-V0
ActiveE-Switch
SWITCH PUSHBUTTON SPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
PA5FN11C-V0
ActiveE-Switch
SWITCH PUSHBUTTON SPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PA5FN11C-V0 |
|---|---|
| Actuator Marking | No Marking |
| Circuit | SPST |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | Off-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Standard |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 1.40 | |
Description
General part information
PA5FN11 Series
Pushbutton Switch SPST Standard Panel Mount, Rear
Documents
Technical documentation and resources
No documents available
