T355F226K016AT

Active

KEMET

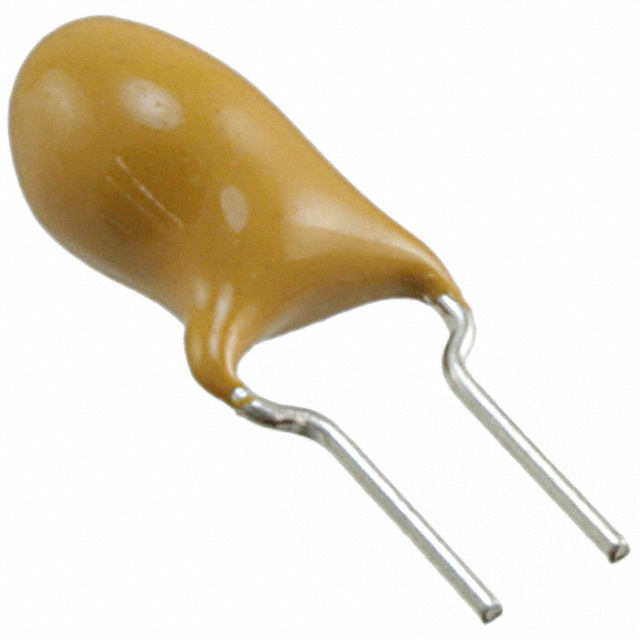

CAP TANT 22UF 10% 16V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 22UF 10% 16V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T355F226K016AT

Capacitance	22 µF
ESR (Equivalent Series Resistance)	2 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	11.2 mm
Height - Seated (Max) [Max] [z]	0.441 in
Lead Spacing	3.18 mm
Lead Spacing	0.125 in
Manufacturer Size Code	F
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	6 mm
Size / Dimension [diameter]	0.236 in
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	16 V

Part	Package / Case	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Manufacturer Size Code	Features	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Tolerance
KEMET T355F226K016AT	Radial	Through Hole	Conformal Coated	-55 °C	125 °C	16 V	F	General Purpose	22 µF	6 mm	0.236 in	3.18 mm	0.125 in	11.2 mm	0.441 in	2 Ohm	10 %
KEMET T355F685M035AT	Radial	Through Hole	Conformal Coated	-55 °C	125 °C	35 V	F	General Purpose	6.8 ÁF	6 mm	0.236 in	3.18 mm	0.125 in	11.2 mm	0.441 in	2.5 Ohm	20 %
