150250-2020-RB

Active

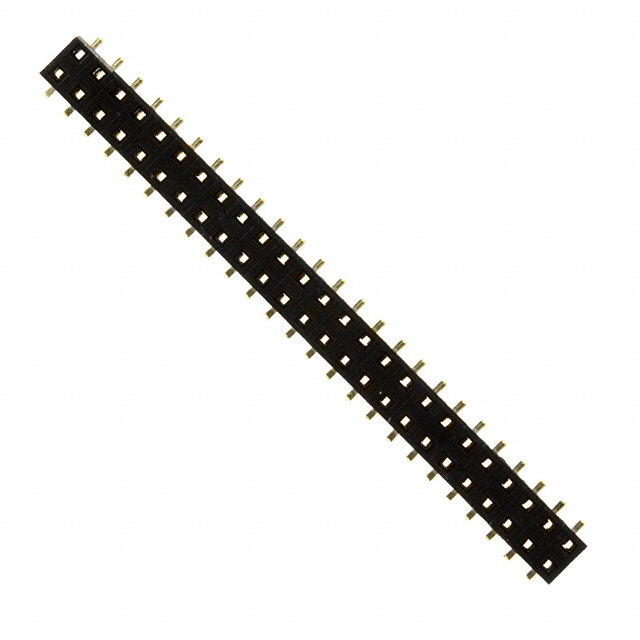

CONN RCPT 50POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150250-2020-RB

Active

CONN RCPT 50POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

150250 Series

50 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150250-2020-RB	150250 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.54 mm
Contact Length - Post	-	0.1 in
Contact Length - Post	-	3.18 mm
Contact Length - Post	-	0.125 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide
Insulation Color	Black	Black
Insulation Height	4.65 mm	4.5 - 4.65 mm
Insulation Height	0.183 in	0.177 - 0.183 "
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Right Angle, Surface Mount, Through Hole
Number of Positions	50	50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150250 Series

CONN RCPT 50P 0.079 GOLD PCB R/A

Part	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish - Mating	Material Flammability Rating	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Termination	Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Fastening Type	Features	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [custom]	Insulation Height [custom]
3M 150250-5002-RB	Female Socket	0.079 in	2 mm	All	0.179 "	4.55 mm	Square	Copper Alloy	Thermoplastic	30 Áin	0.76 Ám	2	2.54 mm	0.1 in	50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Through Hole, Right Angle	105 ░C	-55 °C	Tin	Push-Pull
3M 150250-2020-TB	Female Socket	0.079 in	2 mm	All	0.183 in	4.65 mm	Square	Copper Alloy	Thermoplastic	30 Áin	0.76 Ám	2			50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Surface Mount	105 ░C	-55 °C	Tin-Lead	Push-Pull	Board Guide
3M 150250-5022-TB	Female Socket	0.079 in	2 mm	All	0.179 "	4.55 mm	Square	Copper Alloy	Thermoplastic	30 Áin	0.76 Ám	2	2.54 mm	0.1 in	50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Through Hole, Right Angle	105 ░C	-55 °C	Tin-Lead	Push-Pull	Board Guide
3M 150250-6002-TB	Female Socket	0.079 in	2 mm	All	0.177 in	4.5 mm	Square	Copper Alloy	Thermoplastic	30 Áin	0.76 Ám	2	2.54 mm	0.1 in	50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Through Hole	105 ░C	-55 °C	Tin-Lead	Push-Pull
3M 150250-2020-TH	Female Socket	0.079 in	2 mm	All	0.183 in	4.65 mm	Square	Copper Alloy	Thermoplastic	15 µin	0.38 µm	2			50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Surface Mount	105 ░C	-55 °C	Tin-Lead	Push-Pull	Board Guide
3M 150250-5022-RB	Female Socket	0.079 in	2 mm	All	0.179 "	4.55 mm	Square	Copper Alloy	Thermoplastic	30 Áin	0.76 Ám	2	2.54 mm	0.1 in	50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Through Hole, Right Angle	105 ░C	-55 °C	Tin	Push-Pull	Board Guide
3M 150250-2020-RB	Female Socket	0.079 in	2 mm	All	0.183 in	4.65 mm	Square	Copper Alloy	Thermoplastic	30 Áin	0.76 Ám	2			50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Surface Mount	105 ░C	-55 °C	Tin	Push-Pull	Board Guide
3M 150250-6002-RB	Female Socket	0.079 in	2 mm	All	0.177 in	4.5 mm	Square	Copper Alloy	Thermoplastic	30 Áin	0.76 Ám	2	2.54 mm	0.1 in	50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Through Hole	105 ░C	-55 °C	Tin	Push-Pull
3M 150250-5202-RB	Female Socket	0.079 in	2 mm	All			Square	Copper Alloy	Thermoplastic	30 Áin	0.76 Ám	2			50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Through Hole, Right Angle	105 ░C	-55 °C	Tin	Push-Pull		3.18 mm	0.125 in
3M 150250-5102-RB	Female Socket	0.079 in	2 mm	All			Square	Copper Alloy	Thermoplastic	30 Áin	0.76 Ám	2	2.54 mm	0.1 in	50	Gold	UL94 V-0	500 V	0.079 in	2 mm	Receptacle	200 µin	5.08 µm	Black	Solder	Board to Board, Cable	Through Hole, Right Angle	105 ░C	-55 °C	Tin	Push-Pull				5.51 mm	0.217 in
