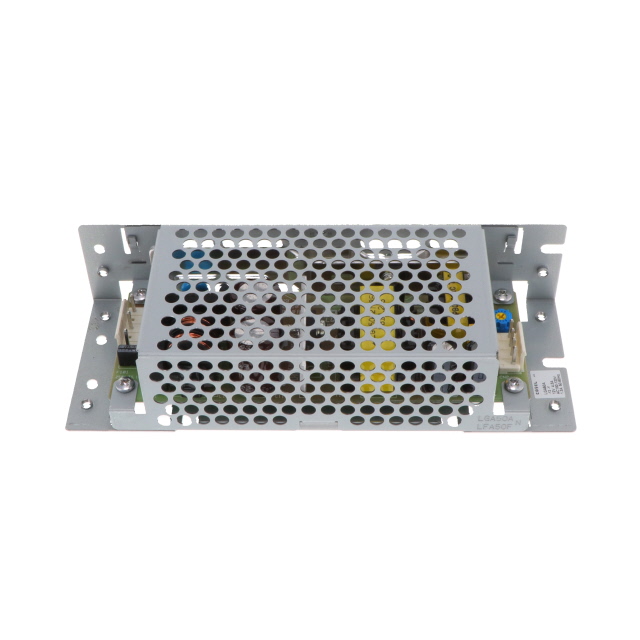

LGA50A-24-HSNJ1

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LGA50A-24-HSNJ1

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LGA50A-24-HSNJ1

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	2.5 A
Efficiency	85 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	5.2 in
Size / Dimension [x]	132.1 mm
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	28.4 mm
Size / Dimension [z]	1.12 in
Type	Enclosed
Voltage - Input [Max]	132 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	2000 V
Voltage - Output 1	24 V

LGA50A Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Number of Outputs	Current - Output 1	Approval Agency	Mounting Type	Voltage - Output 1	Type
Cosel USA, Inc. LGA50A-24-SNC	-10 °C	60 °C	85 %	2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	2.5 A	CE cURus TUV	Chassis Mount	24 V	Enclosed
Cosel USA, Inc. LGA50A-24-SN	-10 °C	60 °C	85 %	2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	2.5 A	CE cURus TUV	Chassis Mount	24 V	Enclosed
Cosel USA, Inc. LGA50A-24-GJ1	-10 °C	60 °C	85 %	2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	2.5 A	CE cURus TUV	Chassis Mount	24 V	Open Frame
Cosel USA, Inc. LGA50A-12-CJ1	-10 °C	60 °C		2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	4.3 A	CE cURus TUV	Chassis Mount	12 V	Open Frame
Cosel USA, Inc. LGA50A-5-G	-10 °C	60 °C	79 %	2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	10 A	CE cURus TUV	Chassis Mount	5 V	Open Frame
Cosel USA, Inc. LGA50A-24-HJ1Y	-10 °C	60 °C	85 %	2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	2.5 A	CE cURus TUV	Chassis Mount	24 V	Open Frame
Cosel USA, Inc. LGA50A-12-C	-10 °C	60 °C		2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	4.3 A	CE cURus TUV	Chassis Mount	12 V	Open Frame
Cosel USA, Inc. LGA50A-48-J1Y	-10 °C	60 °C	85 %	2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	1.3 A	CE cURus TUV	Chassis Mount	48 V	Open Frame
Cosel USA, Inc. LGA50A-24-HSJ1	-10 °C	60 °C	85 %	2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	2.5 A	CE cURus TUV	Chassis Mount	24 V	Open Frame
Cosel USA, Inc. LGA50A-24-HSNJ1	-10 °C	60 °C	85 %	2000 V	132 VAC	85 VAC	5.2 in	1.97 "	28.4 mm	50 mm	132.1 mm	1.12 in	ITE (Commercial)	1	2.5 A	CE cURus TUV	Chassis Mount	24 V	Enclosed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.58

Description

General part information

LGA50A Series

Enclosed AC DC Converters 1 Output 24V 85 ~ 132 VAC Input
