133101

Active

Amphenol RF

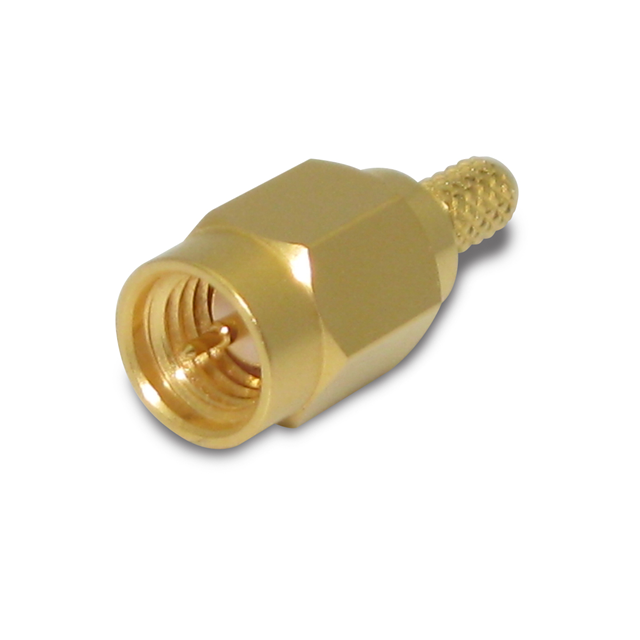

SSMA STRAIGHT CRIMP PLUG RG-174 RG-188 RG-316 TIMES LMR-100A 50 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol RF

SSMA STRAIGHT CRIMP PLUG RG-174 RG-188 RG-316 TIMES LMR-100A 50 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	133101

Body Finish	Gold
Body Material	Brass
Cable Group	LMR-100, RG-316, RG-174, RG-188, RG-188A, M17/119-RG174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SSMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Mating Cycles	Body Finish	Frequency - Max [Max]	Number of Ports	Center Contact Plating	Includes	Shield Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Contact Termination	Body Material	Connector Type	Mounting Type	Housing Color	Center Contact Material	Cable Group	Connector Style
Amphenol RF 133101	500	Gold	12.5 GHz	1	Gold	1 Connector 1 Contact 1 Ferrule	Crimp	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	50 Ohms	Solder	Brass	Male Pin Plug	Free Hanging (In-Line)	Gold	Brass	LMR-100 M17/119-RG174 RG-174 RG-188 RG-188A RG-316	SSMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
