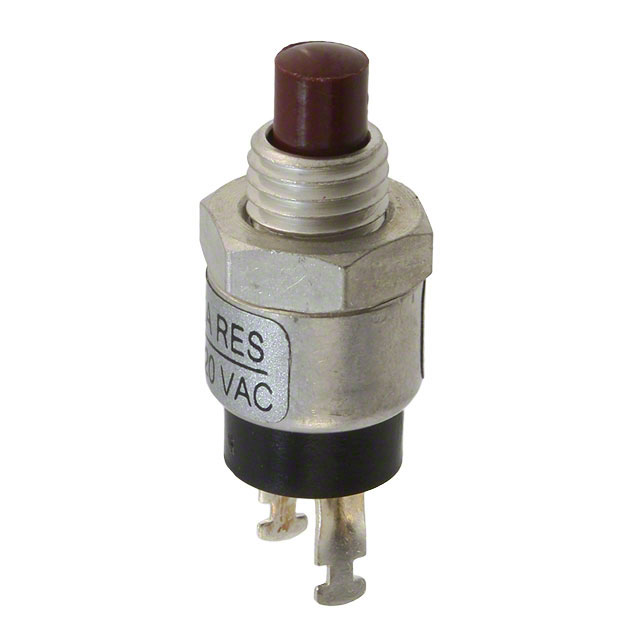

30-6UL

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 5A 120V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 5A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	30-6UL	30-6 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Plunger	Round, Plunger
Circuit	SPST-NC	SPST-NC
Color - Actuator/Cap	Red	Red
Current Rating (Amps)	5 A	1 - 5 A
Electrical Life	6000 Cycles	6000 - 1000000 Cycles
Features	-	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	6.75 mm	6.75 mm
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Solder Lug, Wire Leads
Type	Standard	Standard
Voltage Rating - AC	120 V	115 - 120 V

SWITCH PUSH SPST-NC 1A 115V

Part	Voltage Rating - AC	Color - Actuator/Cap	Mounting Type	Electrical Life	Termination Style	Actuator Marking	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Circuit
Grayhill Inc. 30-6-E	115 V	Red	Panel Mount, Rear	1000000 Cycles	Solder Lug	No Marking	6.75 mm	On-Mom	Round, Plunger	1 A	85 °C	-40 °C	Standard	Epoxy Sealed Terminals	SPST-NC
Grayhill Inc. 30-6-EW	115 V	Red	Panel Mount, Rear	1000000 Cycles	Wire Leads	No Marking	6.75 mm	On-Mom	Round, Plunger	1 A	85 °C	-40 °C	Standard	Epoxy Sealed Terminals	SPST-NC
Grayhill Inc. 30-6UL	120 V	Red	Panel Mount, Rear	6000 Cycles	Solder Lug	No Marking	6.75 mm	On-Mom	Round, Plunger	5 A	85 °C	-40 °C	Standard		SPST-NC
