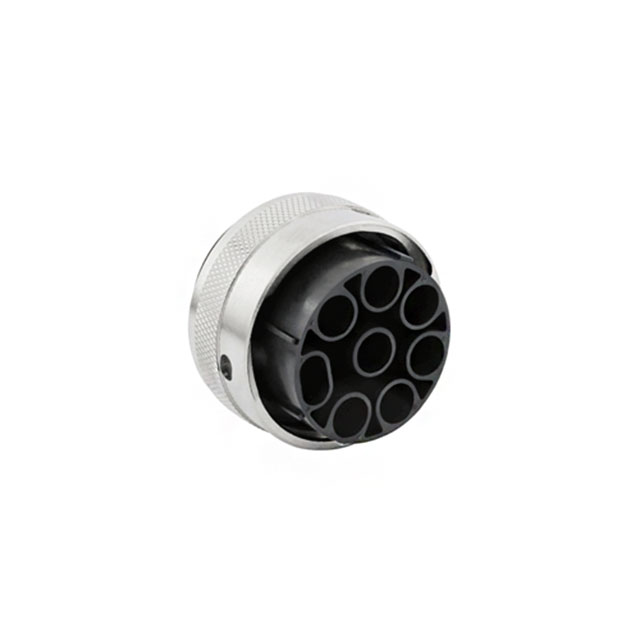

Specification	UTG6247SN

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16, 8
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Position Types	PE
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert Length	24 mm
Shell Size - Insert Width	7 mm
Shielding	Unshielded
Type	For Female Sockets

UTG62 Series

Part	Contact Type	Contact Shape	Insert Material	Shielding	Shell Material	Type	Fastening Type	Shell Size - Insert Length	Shell Size - Insert Width	Material Flammability Rating	Housing Color	Note	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Contact Size	Connector Type	Mounting Type	Shell Finish	Features	Orientation	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Position Types	Shell Size - Insert	Shell Size - Insert	Color	Accessory Type	Material	For Use With/Related Products
Amphenol Aerospace Operations UTG62411SN	Crimp	Circular	Glass Filled Thermoplastic	Unshielded	Brass	For Female Sockets	Bayonet Lock	24 mm	11 mm	UL94 V-0	Silver	Contacts Not Included	11	125 °C	-55 °C	8 16	Plug Housing	Free Hanging (In-Line)	Nickel	Coupling Nut	N (Normal)
Amphenol Aerospace Operations UTG620-28PN	Crimp	Circular	Glass Filled Thermoplastic	Unshielded	Brass	For Male Pins	Bayonet Lock			UL94 V-0	Silver	Contacts Not Included	28	125 °C	-55 °C	16 S	Plug Housing	Free Hanging (In-Line)	Nickel	Coupling Nut	N (Normal)	28	20
Amphenol Aerospace Operations UTG6247PN	Crimp	Circular	Glass Filled Thermoplastic	Unshielded	Brass	For Male Pins	Bayonet Lock	24 mm	7 mm	UL94 V-0	Silver	Contacts Not Included	9	125 °C	-55 °C	8 16	Plug Housing	Free Hanging (In-Line)	Nickel	Coupling Nut	N (Normal)			PE
Amphenol Aerospace Operations UTG624-48PN	Crimp	Circular	Glass Filled Thermoplastic	Unshielded	Brass	For Male Pins	Bayonet Lock			UL94 V-0	Silver	Contacts Not Included	48	125 °C	-55 °C	16 S	Plug Housing	Free Hanging (In-Line)	Nickel	Coupling Nut	N (Normal)	48	24
Amphenol Aerospace Operations UTG622-35SN	Crimp	Circular	Glass Filled Thermoplastic	Unshielded	Brass	For Female Sockets	Bayonet Lock			UL94 V-0	Silver	Contacts Not Included	35	125 °C	-55 °C	16 S	Plug Housing	Free Hanging (In-Line)	Nickel	Coupling Nut	N (Normal)	35	22
Amphenol Aerospace Operations UTG622DCG																				Dust Tight Metal Chain Waterproof					22	22	Black	Cap (Cover) Dust	Plastic	Trim Trio® UTG UTO UTOW UTP Plugs
Amphenol Aerospace Operations UTG62448SN	Crimp	Circular	Glass Filled Thermoplastic	Unshielded	Brass	For Female Sockets	Bayonet Lock			UL94 V-0	Silver	Contacts Not Included	48	125 °C	-55 °C	16 S	Plug Housing	Free Hanging (In-Line)	Nickel	Coupling Nut	N (Normal)	48	24
Amphenol Aerospace Operations UTG6247SN	Crimp	Circular	Glass Filled Thermoplastic	Unshielded	Brass	For Female Sockets	Bayonet Lock	24 mm	7 mm	UL94 V-0	Silver	Contacts Not Included	9	125 °C	-55 °C	8 16	Plug Housing	Free Hanging (In-Line)	Nickel	Coupling Nut	N (Normal)			PE
Amphenol Aerospace Operations UTG62020SN	Crimp	Circular	Glass Filled Thermoplastic	Unshielded	Brass	For Female Sockets	Bayonet Lock			UL94 V-0	Silver	Contacts Not Included	20	125 °C	-55 °C	16 S	Plug Housing	Free Hanging (In-Line)	Nickel	Coupling Nut	N (Normal)	20	20	PE
Amphenol Aerospace Operations UTG622-35PN	Crimp	Circular	Glass Filled Thermoplastic	Unshielded	Brass	For Male Pins	Bayonet Lock			UL94 V-0	Silver	Contacts Not Included	35	125 °C	-55 °C	16 S	Plug Housing	Free Hanging (In-Line)	Nickel	Coupling Nut	N (Normal)	35	22
