10314-A500-00
Active3M
CONN BACKSHELL 14POS 60DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
10314-A500-00
Active3M
CONN BACKSHELL 14POS 60DEG SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10314-A500-00 | 10314 Series |
|---|---|---|
| Accessory Type | Two Piece Backshell | Two Piece Backshell and Cover, Two Piece Backshell |
| Cable Exit | 60 ° | 60 - 180 ° |
| Cable Type | Round | Round |
| Color | Silver | Beige, Silver, Black, Gray, Medium |
| Features | Latch Lock | Latch Lock |
| Hardware | - | Assembly Hardware, Strain Relief |
| Material | Zinc Alloy, Metal | Zinc Alloy, Polybutylene Terephthalate (PBT), Glass Filled, Metal |
| Material | - | Plastic, Steel |
| Material | - | Metal |
| Number of Positions | 14 | 14 |
| Plating | Nickel | Nickel |
| Primary Material | Metal | Metal, Plastic |
| Shielding | Shielded | Shielded, Unshielded |
10314 Series
CONNECTOR BACKSHELL, PLASTIC SHIELDED JUNCTION BACKSHELL, MDR 14 POSITION CONNECTOR, 14, 180°
| Part | Material [custom] | Material [custom] | Cable Type | Cable Exit | Color | Accessory Type | Primary Material | Number of Positions | Features | Shielding | Plating | Material | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Plastic, Steel | Metal | Round | 180 ° | Beige | Two Piece Backshell and Cover | Metal | 14 | Latch Lock | Shielded | ||||
Round | 60 ° | Silver | Two Piece Backshell | Metal | 14 | Latch Lock | Shielded | Nickel | Zinc Alloy | ||||
Round | 180 ° | Black | Two Piece Backshell | Plastic | 14 | Latch Lock | Unshielded | Polybutylene Terephthalate (PBT), Glass Filled | Assembly Hardware, Strain Relief | ||||
Round | 180 ° | Silver | Two Piece Backshell | Metal | 14 | Latch Lock | Shielded | Nickel | Metal, Zinc Alloy | ||||
Plastic, Steel | Metal | Round | 180 ° | Gray, Medium | Two Piece Backshell and Cover | Metal | 14 | Latch Lock | Shielded | ||||
Plastic, Steel | Metal | Round | 180 ° | Black | Two Piece Backshell and Cover | Metal | 14 | Latch Lock | Shielded | ||||
Round | 60 ° | Silver | Two Piece Backshell | Metal | 14 | Latch Lock | Shielded | Nickel | Metal, Zinc Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10314 Series

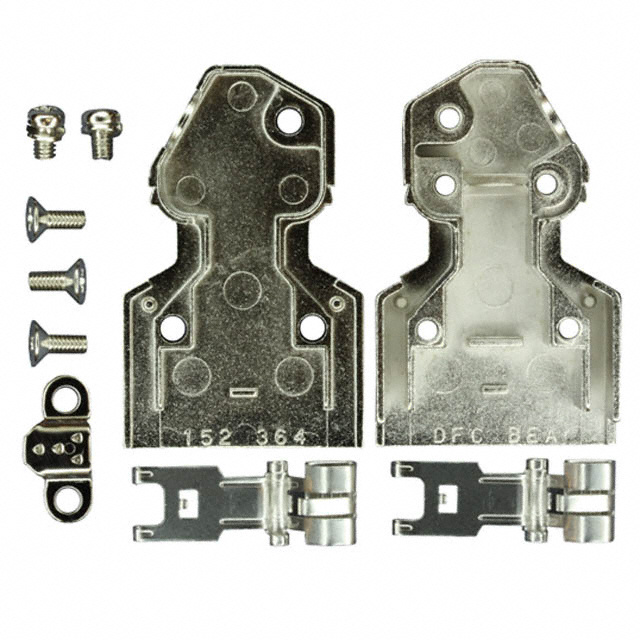

14 Position Two Piece Backshell Connector Silver 60° Shielded
