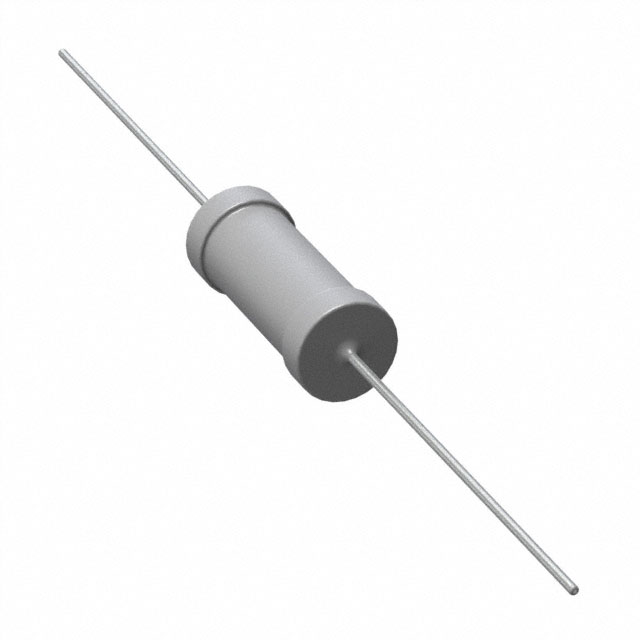

ER58300RJT

Active

TE Connectivity Passive Product

RES 300 OHM 5% 7W AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 300 OHM 5% 7W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	ER58300RJT

Composition	Wirewound
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	7 W
Resistance	300 Ohms
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Size / Dimension [z]	22.2 mm
Size / Dimension [z]	0.874 in
Supplier Device Package	Axial
Temperature Coefficient [Max]	60 ppm/°C
Temperature Coefficient [Min]	0 ppm/°C
Tolerance	5 %

Part	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Resistance	Power (Watts)	Temperature Coefficient [Max]	Number of Terminations	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Tolerance
TE Connectivity Passive Product ER58300RJT	22.2 mm	0.315 "	8 mm	0.874 in	300 Ohms	7 W	60 ppm/°C	2	Wirewound	-55 °C	200 °C	Axial	Axial	5 %
TE Connectivity Passive Product ER5815RJT	22.2 mm	0.315 "	8 mm	0.874 in	15 Ohms	7 W	60 ppm/°C	2	Wirewound	-55 °C	200 °C	Axial	Axial	5 %
TE Connectivity Passive Product ER587R5JT	22.2 mm	0.315 "	8 mm	0.874 in	7.5 Ohms	7 W	60 ppm/°C	2	Wirewound	-55 °C	200 °C	Axial	Axial	5 %
TE Connectivity Passive Product ER5810KFT	22.2 mm	0.315 "	8 mm	0.874 in	10000 Ohms	7 W	60 ppm/°C	2	Wirewound	-55 °C	200 °C	Axial	Axial	1 %
TE Connectivity Passive Product ER584R7JT	22.2 mm	0.315 "	8 mm	0.874 in	4.7 Ohms	7 W	60 ppm/°C	2	Wirewound	-55 °C	200 °C	Axial	Axial	5 %
TE Connectivity Passive Product ER5820KFT	22.2 mm	0.315 "	8 mm	0.874 in	20 kOhms	7 W	60 ppm/°C	2	Wirewound	-55 °C	200 °C	Axial	Axial	1 %
TE Connectivity Passive Product ER5833RJT	22.2 mm	0.315 "	8 mm	0.874 in	33 Ohms	7 W	60 ppm/°C	2	Wirewound	-55 °C	200 °C	Axial	Axial	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	2000	$ 0.49

General part information

300 Ohms ±5% 7W Through Hole Resistor Axial Wirewound
