A10245-06
ActiveLaird Technologies - Thermal Materials
THERM PAD 228.6MMX228.6MM WHT
A10245-06
ActiveLaird Technologies - Thermal Materials
THERM PAD 228.6MMX228.6MM WHT
Description
General part information
A10245 Series

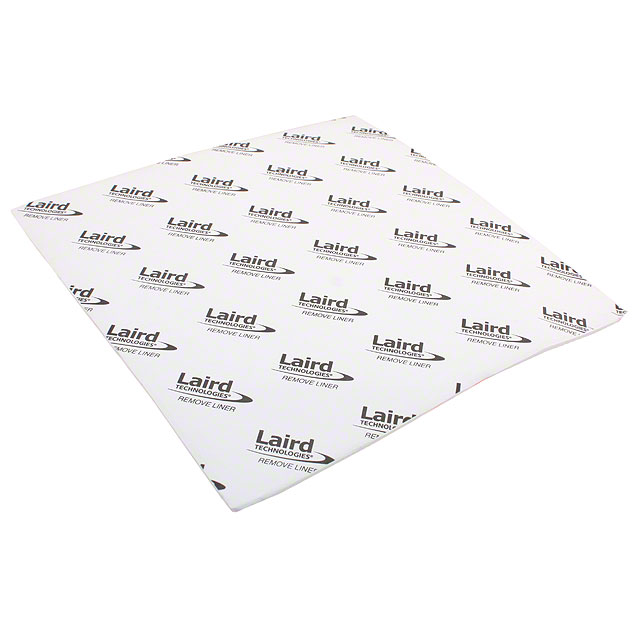

Thermal Pad White 228.60mm x 228.60mm Square Tacky - Both Sides
Technical Specifications
Parameters and characteristics for this part
| Specification | A10245-06 |
|---|---|
| Adhesive | Tacky - Both Sides |
| Backing | Fiberglass |
| Carrier | Fiberglass |
| Color | White |
| Material | Silicone Elastomer |
| Outline Length | 228.6 mm |
| Outline Width | 228.6 mm |
| Shape | Square |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Shipment |
| Thermal Conductivity | 3 W/m-K |
| Thickness | 0.16 in |
| Type | Sheet |
