Connectors, Interconnects
770587-1
ActiveTE Connectivity Raychem Cable Protection

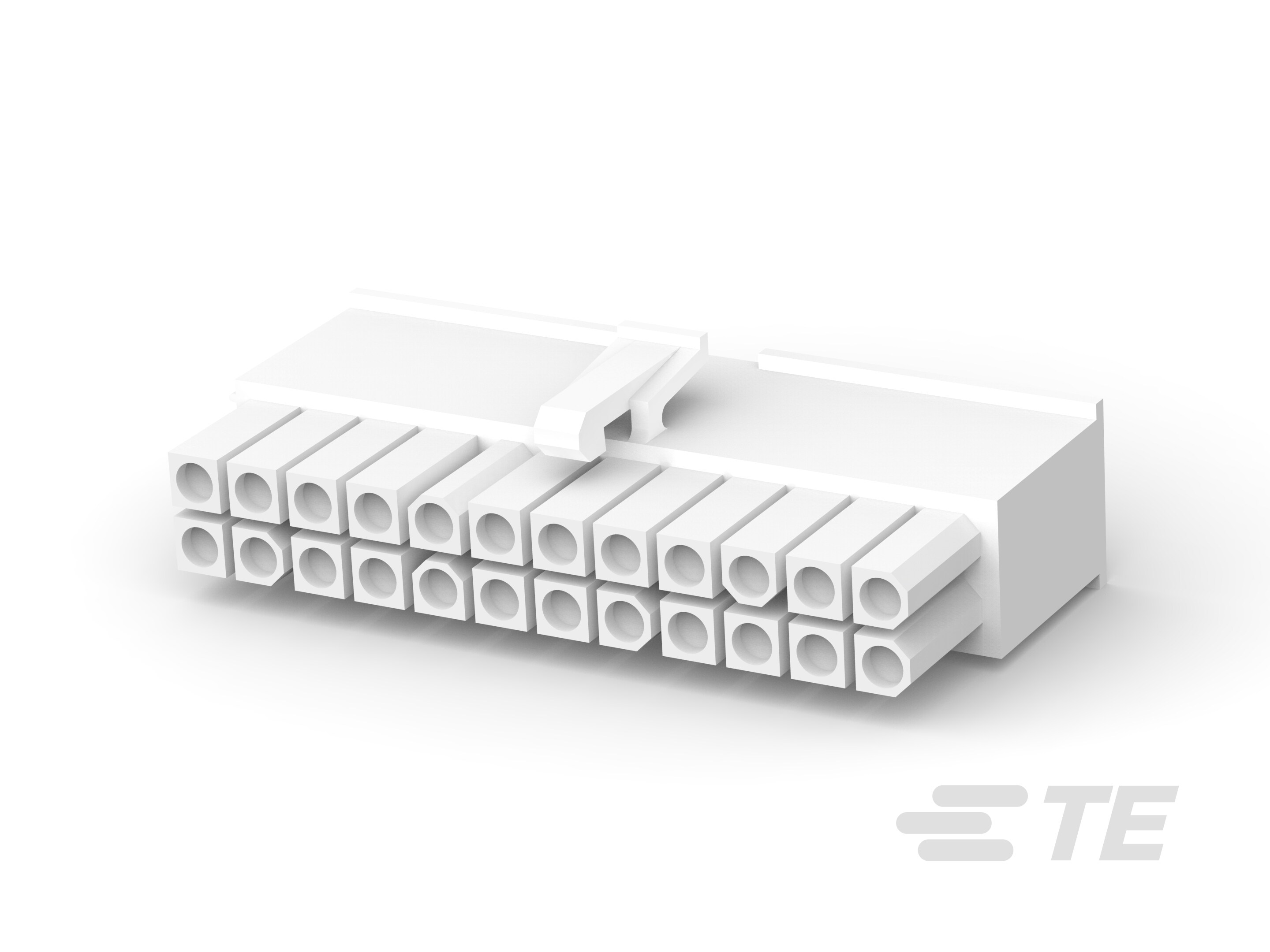

(770587-1) 24P MINI UMNL PLUG HSG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 770587-1 |
|---|---|
| Color | White |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 4.14 mm |
| Pitch [x] | 0.163 in |
| Row Spacing | 4.14 mm |
| Row Spacing | 0.163 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.75 | |
| 10 | $ 2.45 | |||
| 100 | $ 2.21 | |||
| 1000 | $ 1.79 | |||
| 5000 | $ 1.58 | |||
Description
General part information
770587 Series
24 Rectangular Connectors - Housings Plug White 0.163" (4.14mm)
