SFW5S-2STMAE1LF

Active

Amphenol ICC (FCI)

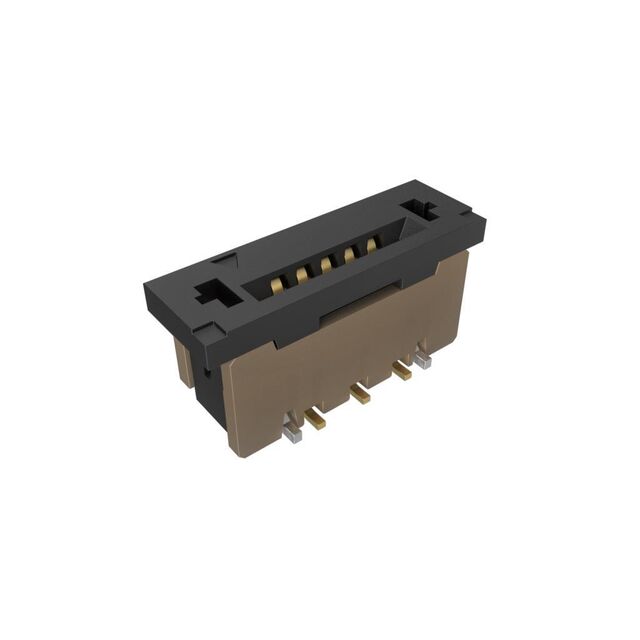

CONN FPC VERT 5POS 1MM SMD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FPC VERT 5POS 1MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFW5S-2STMAE1LF

Actuator Material	Thermoplastic, Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Gold
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	5.3 mm
Height Above Board	0.209 in
Housing Color	Brown
Housing Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

Part	Mounting Type	Pitch [x]	Pitch [x]	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Contact Finish	Material Flammability Rating	Connector/Contact Type	Contact Material	Height Above Board	Height Above Board	Housing Material	Voltage Rating	Termination	FFC, FCB Thickness	Flat Flex Type	Actuator Material	Cable End Type	Actuator Color	Locking Feature
Amphenol ICC (FCI) SFW5S-2STAE1LF	Surface Mount	0.039 in	1 mm	20	85 °C	-55 °C	Brown	Gold	UL94 V-0	Contacts Vertical - 1 Sided	Phosphor Bronze	5.3 mm	0.209 in	Thermoplastic Glass Filled	100 V	Solder	0.33 mm	FPC	Thermoplastic Glass Filled
Amphenol ICC (FCI) SFW5S-6STE1LF	Surface Mount	0.039 in	1 mm	10	85 °C	-55 °C	Brown	Tin	UL94 V-0	Contacts Vertical - 1 Sided	Phosphor Bronze	5.3 mm	0.209 in	Thermoplastic Glass Filled	100 V	Solder	0.3 mm	CIC	Thermoplastic Glass Filled	Tapered	Black	Slide Lock
Amphenol ICC (FCI) SFW5S-2STMAE1LF	Surface Mount	0.039 in	1 mm	20	85 °C	-55 °C	Brown	Gold	UL94 V-0	Contacts Vertical - 1 Sided	Phosphor Bronze	5.3 mm	0.209 in	Thermoplastic Glass Filled	100 V	Kinked Pin	0.3 mm	FPC	Thermoplastic Glass Filled	Straight Tapered
Amphenol ICC (FCI) SFW5S-2STE1LF	Surface Mount	0.039 in	1 mm	20	105 ░C	-55 °C	Brown	Tin	UL94 V-0	Contacts Vertical - 1 Sided	Phosphor Bronze	5.3 mm	0.209 in	Thermoplastic Glass Filled	100 V	Solder	0.33 mm	FFC FPC	Thermoplastic Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
