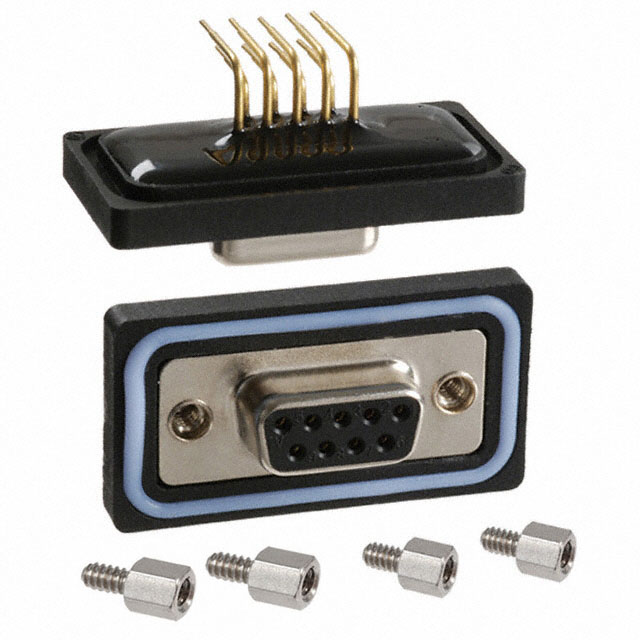

A-DF 09 AA-WP

Active

Assmann WSW Components

CONN D-SUB RCPT 9POS R/A SLDR

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB RCPT 9POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	A-DF 09 AA-WP

Backset Spacing	0.244 "
Backset Spacing	6.2 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Flange Feature	Female Screwlock, Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

Part	Contact Type	Number of Positions	Termination	Dielectric Material	Backset Spacing	Backset Spacing	Color	Connector Style	Number of Rows	Mounting Type	Contact Material	Flange Feature	Ingress Protection	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Connector Type	Shell Material, Finish	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish Thickness	Current Rating (Amps)	Material Flammability Rating
Assmann WSW Components A-DF 09 AA-WP	Signal	9	Solder	Glass Filled Nylon Polyamide (PA)	0.244 "	6.2 mm	Black	D-Sub	2	Panel Mount Right Angle Through Hole	Copper Alloy	Female Screwlock Mating Side	IP67 - Dust Tight Waterproof	DE E	1	Gold	Receptacle Female Sockets
Assmann WSW Components A-DF 09 PP-F	Signal	9	Solder	Polybutylene Terephthalate (PBT) Glass Filled			Black	D-Sub	2	Through Hole	Copper Alloy	Housing/Shell (Unthreaded)		DE E	1	Gold	Receptacle Female Sockets	Steel	250 VDC	85 °C	-20 C	Filter	Flash	3 A	UL94 V-0
Assmann WSW Components A-DF 09 A/KG-F	Signal	9	Solder	Polybutylene Terephthalate (PBT) Glass Filled	0.319 in	8.1 mm	Black	D-Sub	2	Through Hole Right Angle	Copper Alloy	Housing/Shell (4-40)		DE E	1	Gold	Receptacle Female Sockets		250 VDC	85 °C	-20 C	Board Lock Filter	Flash	3 A	UL94 V-0
Assmann WSW Components A-DF 09 LL/Z	Signal	9		Polybutylene Terephthalate (PBT) Glass Filled			White	D-Sub	2	Free Hanging (In-Line)	Brass	Housing/Shell (Unthreaded)		DE E	1	Gold	Receptacle Female Sockets	Steel	250 VDC	105 ░C	-55 °C		Flash	3 A	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
