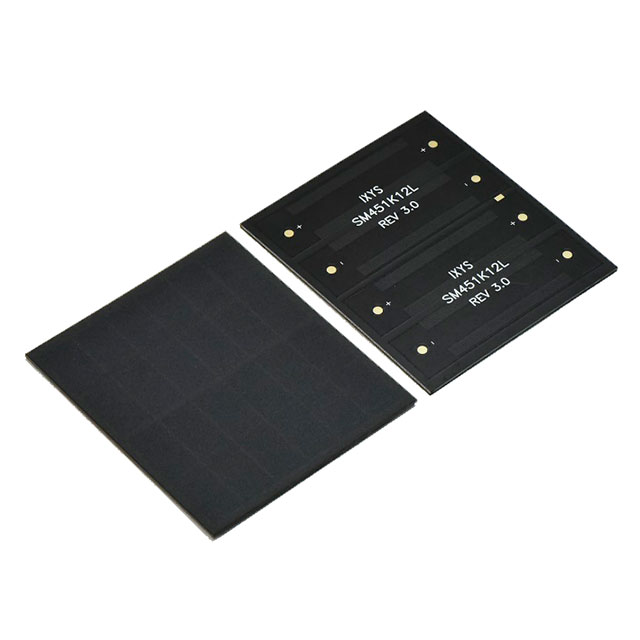

SM451K12L

Obsolete

ANYSOLAR Ltd

MONOCRYS SOLAR CELL 1.176W 8.29V

Search across all available documentation for this part.

Obsolete

ANYSOLAR Ltd

MONOCRYS SOLAR CELL 1.176W 8.29V

Technical Specifications

Parameters and characteristics for this part

MONOCRYS SOLAR CELL 1.176W 8.29V

Part	Voltage @ Pmpp	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Current @ Pmpp	Power (Watts) - Max [Max]	Current - Short Circuit (Isc)	Voltage - Open Circuit
ANYSOLAR Ltd SM451K12L	6.7 V	3.54 in	0.08 in	2 mm	3.11 "	90 mm	79 mm	90 °C	-40 °C	Cells	Monocrystalline	176 mA	1.176 W	187 mA	8.29 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 1.176 W 8.29 V
