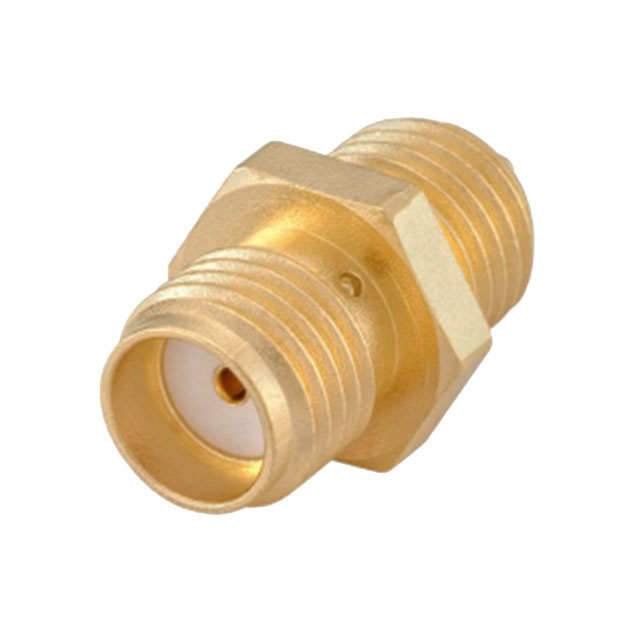

32K644-500L5

Active

Rosenberger

CONN SMA JACK STR 50OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA JACK STR 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	32K644-500L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Voltage Rating	480 V

Part	Frequency - Max [Max]	Body Finish	Impedance	Mounting Feature	Center Contact Material	Connector Type	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Housing Color	Body Material	Dielectric Material	Number of Ports	Connector Style
Rosenberger 32K644-500L5	12.4 GHz	Gold	50 Ohms	Bulkhead - Rear Side Nut	Beryllium Copper	Female Socket Jack	Gold	-65 ░C	165 °C	480 V	Gold	Brass	Polytetrafluoroethylene (PTFE)	1	SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount
