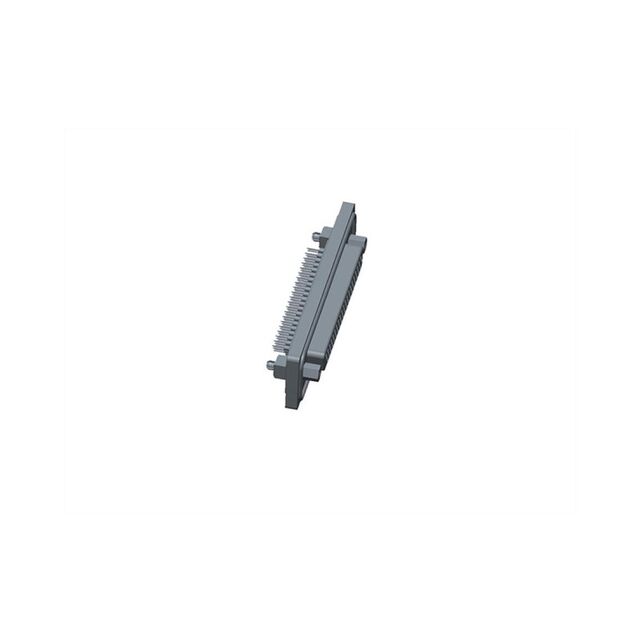

HDB-62PFFP-SA7001

Active

Amphenol LTW

CONN D-SUB HD RCPT 62POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB HD RCPT 62POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-62PFFP-SA7001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Panel Mount
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

Part	Features	Flange Feature	Number of Rows	Contact Finish	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Connector Type	Current Rating (Amps)	Shell Material, Finish	Color	Ingress Protection	Termination	Number of Positions	Dielectric Material	Connector Style	Shell Size, Connector Layout
Amphenol LTW HDB-62PFFP-SA7001	Board Lock Shielded	Female Screwlock (4-40) Mating Side	3	Gold	Panel Mount Through Hole	Copper Alloy	-40 °C	105 ░C	Signal	Receptacle Female Sockets	2 A	Nickel Plated Steel	Black	IP67 - Dust Tight Waterproof	Solder	62	Polybutylene Terephthalate (PBT)	D-Sub High Density	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

62 Position D-Sub, High Density Receptacle, Female Sockets Connector
