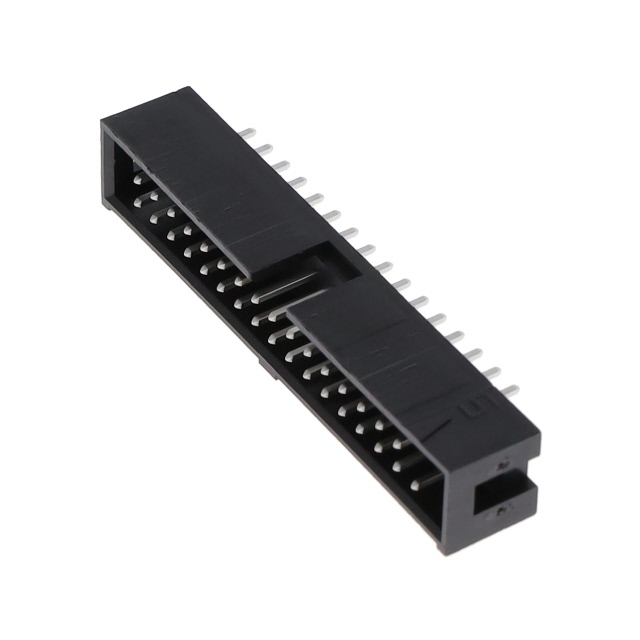

TST-117-01-T-D-01

Active

Samtec Inc.

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTST-102-01-G-D Datasheet 02 .100" High-Temp Shrouded Terminal Strip, Cable Mate +1

TST-117-01-T-D-01

Active

Samtec Inc.

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

DocumentsTST-102-01-G-D Datasheet 02 .100" High-Temp Shrouded Terminal Strip, Cable Mate +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST-117-01-T-D-01

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	33
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.48 in
Overall Contact Length	12.19 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

TST-117 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Shape	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Number of Positions	Contact Finish - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Material Flammability Rating	Style	Insulation Height	Insulation Height	Insulation Color	Shrouding	Termination	Fastening Type	Number of Rows	Mounting Type	Insulation Height [custom]	Insulation Height [custom]	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. TST-117-04-S-D-RA	2.54 mm	0.1 in	Tin	30 Áin	0.76 Ám	-55 °C	125 °C	Keying Slot	Square	All	Polybutylene Terephthalate (PBT) Glass Filled	6.35 mm	0.25 in	Header	34	Gold	Phosphor Bronze	0.1 in	2.54 mm	0.13 in	3.3 mm	Male Pin	UL94 V-0	Board to Cable/Wire	0.365 in	9.27 mm	Black	Shrouded - 4 Wall	Solder	Push-Pull	2	Through Hole Right Angle
Samtec Inc. TST-117-01-L-D-05	2.54 mm	0.1 in	Tin	10 çin	0.25 çm	-55 °C	125 °C	Keying Slot	Square		Polybutylene Terephthalate (PBT) Glass Filled	6.35 mm	0.25 in	Header	34	Gold	Phosphor Bronze	0.1 in	2.54 mm	0.115 in	2.92 mm	Male Pin	UL94 V-0	Board to Cable/Wire			Black	Shrouded - 4 Wall	Solder	Push-Pull	2	Through Hole	0.35 in	8.89 mm	33	0.48 in	12.19 mm
Samtec Inc. TST-117-02-F-D	2.54 mm	0.1 in	Tin			-55 °C	125 °C	Keying Slot	Square	All	Polybutylene Terephthalate (PBT) Glass Filled	6.35 mm	0.25 in	Header	34	Gold	Phosphor Bronze	0.1 in	2.54 mm			Male Pin	UL94 V-0	Board to Cable/Wire			Black	Shrouded - 4 Wall	Solder	Push-Pull	2	Through Hole	0.35 in	8.89 mm		0.53 in	13.46 mm	Flash	0.165 in	4.19 mm
Samtec Inc. TST-117-03-S-D
Samtec Inc. TST-117-03-G-D
Samtec Inc. TST-117-04-F-D-RA	2.54 mm	0.1 in	Tin			-55 °C	125 °C	Keying Slot	Square	All	Polybutylene Terephthalate (PBT) Glass Filled	6.35 mm	0.25 in	Header	34	Gold	Phosphor Bronze	0.1 in	2.54 mm	0.13 in	3.3 mm	Male Pin	UL94 V-0	Board to Cable/Wire	0.365 in	9.27 mm	Black	Shrouded - 4 Wall	Solder	Push-Pull	2	Through Hole Right Angle						Flash
Samtec Inc. TST-117-05-L-D-RA	2.54 mm	0.1 in	Tin	10 çin	0.25 çm	-55 °C	125 °C	Keying Slot	Square	All	Polybutylene Terephthalate (PBT) Glass Filled	6.35 mm	0.25 in	Header	34	Gold	Phosphor Bronze	0.1 in	2.54 mm	0.23 in	5.84 mm	Male Pin	UL94 V-0	Board to Cable/Wire	0.365 in	9.27 mm	Black	Shrouded - 4 Wall	Solder	Push-Pull	2	Through Hole Right Angle
Samtec Inc. TST-117-01-T-D-01	2.54 mm	0.1 in	Tin			-55 °C	105 ░C	Keying Slot	Square		Polybutylene Terephthalate (PBT) Glass Filled	6.35 mm	0.25 in	Header	34		Phosphor Bronze	0.1 in	2.54 mm	0.115 in	2.92 mm	Male Pin	UL94 V-0	Board to Cable/Wire			Black	Shrouded - 4 Wall	Solder	Push-Pull	2	Through Hole	0.35 in	8.89 mm	33	0.48 in	12.19 mm
Samtec Inc. TST-117-02-T-S			Tin			-55 °C	105 ░C	Keying Slot	Square	All	Polybutylene Terephthalate (PBT) Glass Filled	6.35 mm	0.25 in	Header			Phosphor Bronze	0.1 in	2.54 mm			Male Pin	UL94 V-0	Board to Cable/Wire			Black	Shrouded - 4 Wall	Solder	Push-Pull	1	Through Hole	0.35 in	8.89 mm		0.53 in	13.46 mm		0.165 in	4.19 mm
Samtec Inc. TST-117-03-S-D-17

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.41
		50	$ 2.78
		100	$ 2.36
		500	$ 2.10
		1000	$ 1.98
