MOLC-125-02-S-Q-LC-P - MOLC-125-02-S-Q-LC-P

MOLC-125-02-S-Q-LC-P

Active
Samtec Inc.

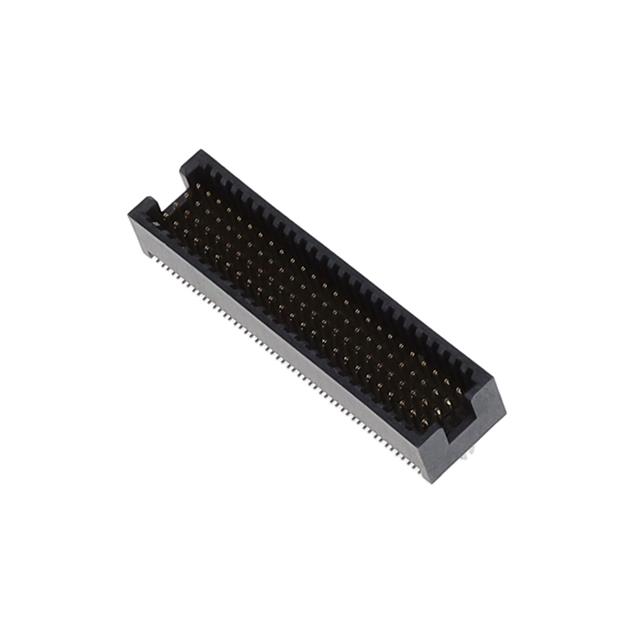

CONN HEADER SMD 100POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet.050" FOURRAY™ Quad Row Terminal Strip+1
MOLC-125-02-S-Q-LC-P - MOLC-125-02-S-Q-LC-P

MOLC-125-02-S-Q-LC-P

Active
Samtec Inc.

CONN HEADER SMD 100POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet.050" FOURRAY™ Quad Row Terminal Strip+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMOLC-125-02-S-Q-LC-P
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact Length - Mating0.13 in
Contact Length - Mating3.3 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)2.6 A
Fastening TypePush-Pull
FeaturesPick and Place, Board Lock
Insulation ColorBlack
Insulation Height5.45 mm
Insulation Height0.215 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions100
Number of Positions LoadedAll
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating0.05 in
Row Spacing - Mating1.27 mm
ShroudingShrouded - 4 Wall
TerminationSolder

MOLC-125 Series
