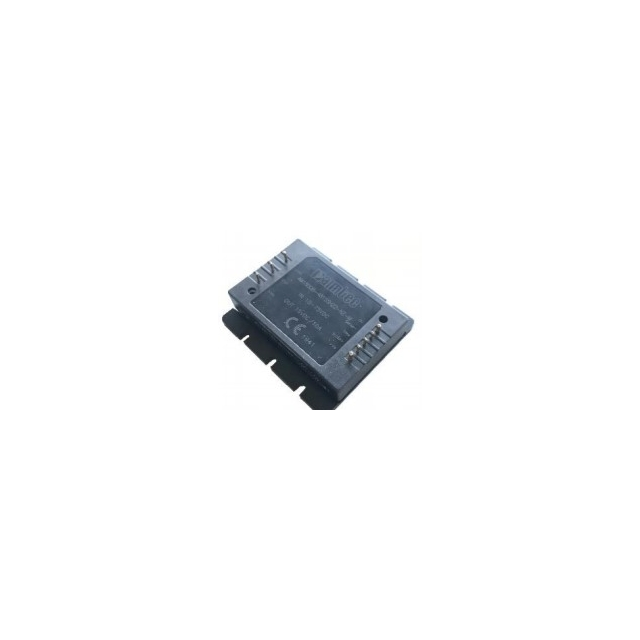

AM150QB-4815SH22-NZ-K

Active

aimtec

DC DC CONVERTER 15V 150W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 15V 150W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 15V 150W

Part	Supplier Device Package	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Power (Watts)	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Efficiency	Features	Voltage - Output 1	Package / Case	Voltage - Isolation	Applications
aimtec AM150QB-4815SH22-NZ-K	Quarter Brick	27.7 mm	40.2 mm	2.43 in	1.09 "	61.8 mm	1.58 in	75 V	150 W	1	Through Hole	85 °C	-40 °C	Isolated Module	18 V	10 A	89 %	Heat Sink, Remote On/Off	15 V	Quarter Brick	2250 VDC	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 10A 18V - 75V Input
