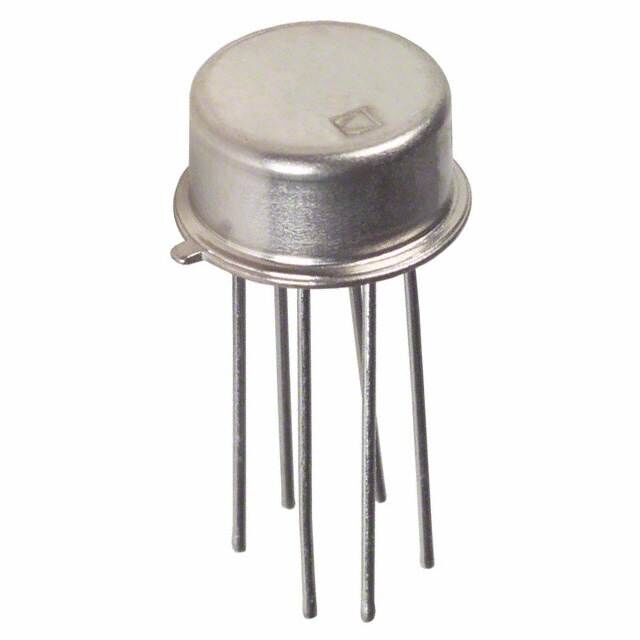

MAT03EH

Obsolete

Analog Devices

TRANS 2PNP 36V 0.02A TO78-6

Search across all available documentation for this part.

Obsolete

Analog Devices

TRANS 2PNP 36V 0.02A TO78-6

Technical Specifications

Parameters and characteristics for this part

Part	Vce Saturation (Max) @ Ib, Ic	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Package / Case	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
Analog Devices MAT03ARC/883C	100 mV	125 ¯C	-55 °C	500 mW	20-CLCC	20-CLCC (9x9)	20 mA	2 PNP (Dual) Matched Pair	200 pA	190 MHz	Surface Mount	100
Analog Devices MAT03EH	100 mV	150 °C	-55 °C	500 mW	TO-78-6 Metal Can	TO-78-6	20 mA	2 PNP (Dual)		190 MHz	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor Array 2 PNP (Dual) 36V 20mA 190MHz 500mW Through Hole TO-78-6
