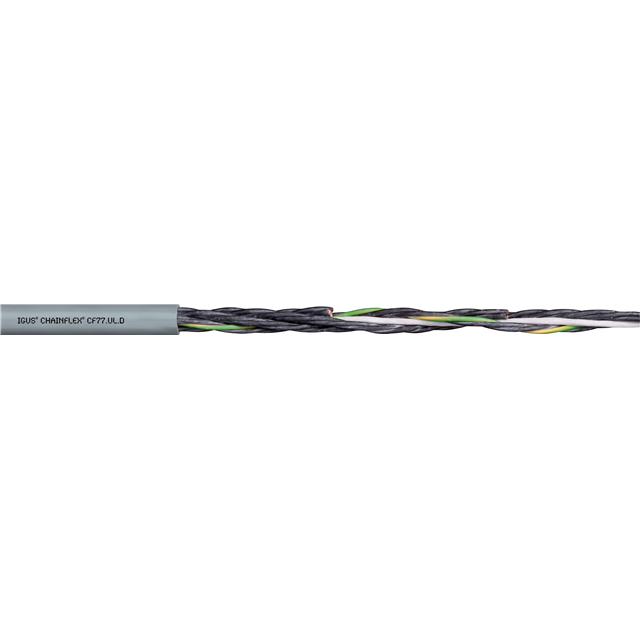

CF77-UL-10-02-D

Active

Igus

CABLE 2COND 17AWG GRAY FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF77-UL-10-02-D

Active

Igus

CABLE 2COND 17AWG GRAY FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CF77-UL-10-02-D

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Features	Flame Retardant, Oil Resistant, Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.256 in
Jacket (Insulation) Diameter [diameter]	6.5 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Voltage	1000 V
Wire Gauge	17 AWG

CF77.UL Series

Part	Length	Conductor Insulation	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Number of Conductors	Voltage	Conductor Material	Cable Type	Features	Jacket Color	Jacket (Insulation) Diameter [diameter]
Igus CF77-UL-15-04-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	16 AWG	0.295 in	7.49 mm	Polyurethane (PU)	4	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray
Igus CF77-UL-02-12-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	24 AWG	0.354 in	8.99 mm	Polyurethane (PU)	12	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray
Igus CF77-UL-15-18-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	16 AWG	0.669 "	16.99 mm	Polyurethane (PU)	18	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray
Igus CF77-UL-15-12-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	16 AWG	0.512 in	13.01 mm	Polyurethane (PU)	12	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray
Igus CF77-UL-10-02-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	17 AWG	0.256 in	6.5 mm	Polyurethane (PU)	2	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray
Igus CF77-UL-07-04-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	18 AWG	0.276 in	7.01 mm	Polyurethane (PU)	4	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray
Igus CF77-UL-15-07-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	16 AWG	0.374 in	9.5 mm	Polyurethane (PU)	7	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray
Igus CF77-UL-07-36-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	18 AWG	0.748 in	19 mm	Polyurethane (PU)	36	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray
Igus CF77-UL-15-25-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	16 AWG		0.768 in	Polyurethane (PU)	25	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray	19.51 mm
Igus CF77-UL-10-42-D	Enter Number of Feet in Order Quantity	Thermoplastic Elastomer (TPE)	17 AWG	0.886 in	22.5 mm	Polyurethane (PU)	42	1000 V	Copper Bare	Multi-Conductor	Abrasion Resistant Flame Retardant Oil Resistant	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.61
		100	$ 1.55
		500	$ 1.50
		1000	$ 1.31

Description

General part information

CF77.UL Series

2 Conductor Multi-Conductor Cable Gray 17 AWG Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources
