General part information

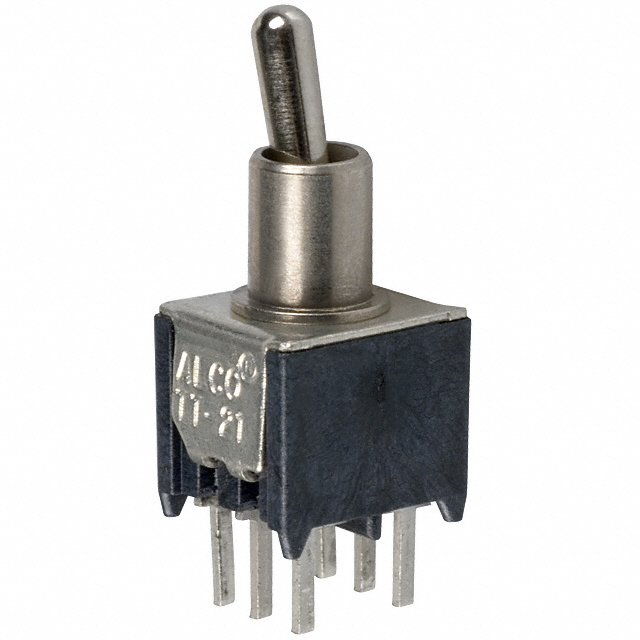

Toggle Switch DPDT Through Hole
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | TT21NGPC1 | TT21N Series |
|---|---|---|
| Actuator Length | - | 7.52 mm |
| Actuator Length [x] | 5.61 mm | 5.61 - 11.61 mm |
| Actuator Material | Brass, Nickel Plated | Brass, Nickel Plated |
| Actuator Type | Standard Round | Flatted, Standard Round |
| Bushing Thread | Unthreaded | 1/4-40, 10-48, Unthreaded |
| Circuit | DPDT | DPDT |
| Current Rating (Amps) | 0.4 VA | 0.4 VA |
| Electrical Life | 80000 Cycles | 80000 Cycles |
| Illumination | Non-Illuminated | Non-Illuminated |
| Mounting Type | Through Hole | Right Angle, Panel Mount, Through Hole |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions | - | 4.83 - 6.4 mm |
| Switch Function | On-On | On-On |
| Termination Style | PC Pin | PC Pin, Wire Wrap |
| Voltage Rating - AC | 20 V | 20 V |
| Voltage Rating - DC | 20 V | 20 V |
SWITCH TOGGLE DPDT 0.4VA 20V
| Part | Panel Cutout Dimensions [diameter] | Illumination | Mounting Type | Circuit | Switch Function | Electrical Life | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Bushing Thread | Actuator Material | Actuator Length [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity ALCOSWITCH Switches TT21NGRA9T1/4 | 6.4 mm | Non-Illuminated | Panel Mount, Right Angle | DPDT | On-On | 80000 Cycles | PC Pin | 0.4 VA | 20 V | 20 V | 11.61 mm | -30 ░C | 85 °C | Flatted | 1/4-40 | Brass, Nickel Plated | |
TE Connectivity ALCOSWITCH Switches TT21NGWW2T | 4.83 mm | Non-Illuminated | DPDT | On-On | 80000 Cycles | Wire Wrap | 0.4 VA | 20 V | 20 V | -30 ░C | 85 °C | Standard Round | 10-48 | Brass, Nickel Plated | 7.52 mm | ||
TE Connectivity ALCOSWITCH Switches TT21NGRA7T1/4 | 6.4 mm | Non-Illuminated | Panel Mount, Right Angle | DPDT | On-On | 80000 Cycles | PC Pin | 0.4 VA | 20 V | 20 V | 11.61 mm | -30 ░C | 85 °C | Flatted | 1/4-40 | Brass, Nickel Plated | |
TE Connectivity ALCOSWITCH Switches TT21NGPC1 | Non-Illuminated | Through Hole | DPDT | On-On | 80000 Cycles | PC Pin | 0.4 VA | 20 V | 20 V | 5.61 mm | -30 ░C | 85 °C | Standard Round | Unthreaded | Brass, Nickel Plated |
