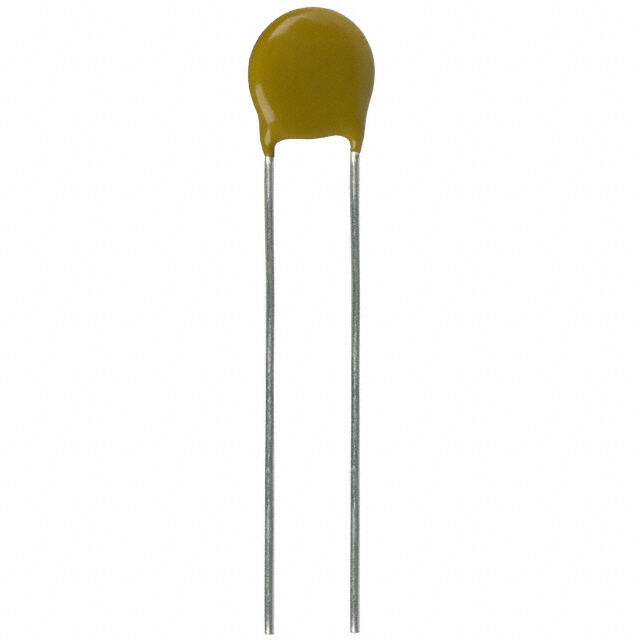

VDR Series

Part	Mounting Type	Capacitance	Varistor Voltage (Typ)	Maximum AC Volts	Varistor Voltage (Max)	Current - Surge	Number of Circuits	Package Diameter	Package Name	Maximum DC Voltage	Operating Temperature (Max)	Operating Temperature (Min)	Energy	Varistor Voltage (Min)
Vishay Dale VDRUS14X150BKE	Through Hole	850 pF	240 V	150 V	264 V	8 kA	1	14 mm	Disc	200 V	125 °C	-40 °C	98 J	216 V
Vishay Dale VDRS05C060TLE	Through Hole	290 pF	100 V	60 V	110 V	400 A	1	7 mm	Disc	85 V	85 °C	-40 °C	2.9 J	90 V
Vishay Dale VDRUS10T150BSE	Through Hole	490 pF	240 V	150 V	264 V	4.5 kA	1	10 mm	Disc	200 V	125 °C	-40 °C	64 J	216 V
Vishay Dale VDRUS10T320BKE	Through Hole	220 pF	510 V	320 V	561 V	4.5 kA	1	10 mm	Disc	420 V	125 °C	-40 °C	107 J	459 V
Vishay Dale VDRS07B035TGE	Through Hole	1300 pF	56 V	35 V	61.6 V	250 A	1	9 mm	Disc	45 V	85 °C	-40 °C	4.4 J	50.4 V
Vishay Dale VDRS07H060BFE	Through Hole	700 pF	100 V	60 V	110 V	1200 A	1	9 mm	Disc	85 V	85 °C	-40 °C	8.3 J	90 V
Vishay Dale VDRS07H150BKE	Through Hole	270 pF	240 V	150 V	264 V	1200 A	1	9 mm	Disc	200 V	85 °C	-40 °C	20 J	216 V
Vishay Dale VDRUS14X130BKE	Through Hole	1050 pF	205 V	130 V	225.5 V	8 kA	1	14 mm	Disc	170 V	125 °C	-40 °C	82 J	184.5 V
Vishay Dale VDRS14T250ALE	Through Hole	480 pF	390 V	250 V	429 V	4.5 kA	1	16 mm	Disc	320 V	85 °C	-40 °C	96 J	351 V
Vishay Dale VDRH10S140BSE	Through Hole	540 pF	220 V	140 V	242 V	3.5 kA	1	12 mm	Disc	180 V	125 °C	-40 °C	39 J	198 V
