Specification	TNPV1210820KBEEN

Composition	Thin Film
Features	Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur, High Voltage
Height - Seated (Max)	0.03 in
Number of Terminations	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	1210 (3225 Metric)
Package Name	1210
Power (Watts)	0.333 W
Power (Watts) Options	1/3W
Ratings	AEC-Q200
Resistance	820 kOhm
Size / Dimension Length	0.126 in
Size / Dimension Width	0.1 in
Temperature Coefficient	25 ppm/°C
Tolerance	0.1 %

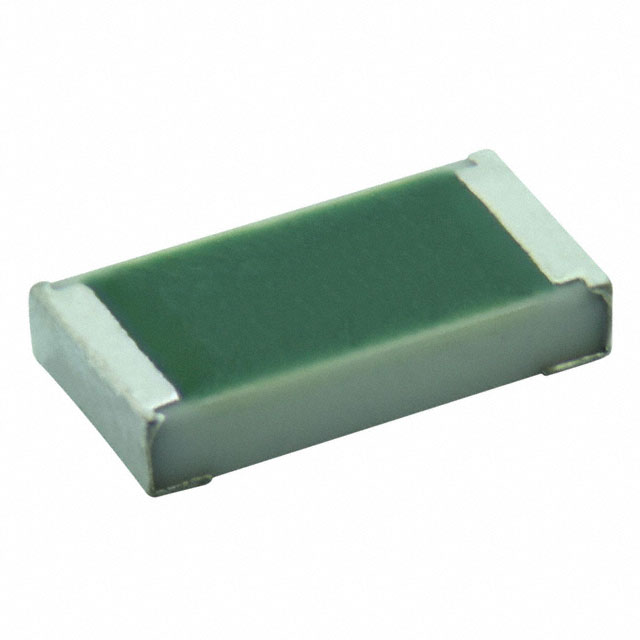

TNPV Series

Part	Features	Resistance	Power (Watts)	Power (Watts) Options	Size / Dimension Width	Size / Dimension Length	Composition	Temperature Coefficient	Height - Seated (Max)	Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	Ratings	Package Name	Number of Terminations	Package / Case
Vishay Dale TNPV12102M70DEEA	Anti-Sulfur Automotive AEC-Q200 High Voltage Moisture Resistant	2.7 MOhm	0.333 W	1/3W	0.1 in	0.126 in	Thin Film	25 ppm/°C	0.03 in	0.5 %	125 °C	-55 °C	AEC-Q200	1210	2	1210 (3225 Metric)
Vishay Dale TNPV1206510KFHEA	Anti-Sulfur Automotive AEC-Q200 High Voltage Moisture Resistant	510 kOhm	250 mW	1/4W	0.063 in	0.126 in	Thin Film	50 ppm/°C	0.026 in	1 %	125 °C	-55 °C		1206	2	1206 (3216 Metric)
Vishay Dale TNPV1210820KBEEN	Anti-Sulfur Automotive AEC-Q200 High Voltage Moisture Resistant	820 kOhm	0.333 W	1/3W	0.1 in	0.126 in	Thin Film	25 ppm/°C	0.03 in	0.1 %	125 °C	-55 °C	AEC-Q200	1210	2	1210 (3225 Metric)
Vishay Dale TNPV12061M00BXEN	Anti-Sulfur Automotive AEC-Q200 High Voltage Moisture Resistant	1 MOhm	250 mW	1/4W	0.063 in	0.126 in	Thin Film	15 ppm/°C	0.026 in	0.1 %	125 °C	-55 °C		1206	2	1206 (3216 Metric)
Vishay Dale TNPV1206499KBXEA	Anti-Sulfur Automotive AEC-Q200 High Voltage Moisture Resistant	499 kOhm	250 mW	1/4W	0.063 in	0.126 in	Thin Film	15 ppm/°C	0.026 in	0.1 %	125 °C	-55 °C	AEC-Q200	1206	2	1206 (3216 Metric)
Vishay Dale TNPV1210560KBYEN	Anti-Sulfur Automotive AEC-Q200 High Voltage Moisture Resistant	560 kOhm	0.333 W	1/3W	0.096 in	0.126 in	Thin Film	10 ppm/°C	0.03 in	0.1 %	125 °C	-55 °C		1210	2	1210 (3225 Metric)
