66101-2
ActiveCIRCULAR CONNECTOR CONTACT, SOCKET, CRIMP, 18 AWG, 16 AWG, G SERIES, M SERIES AND CPC CONNECTORS
66101-2
ActiveCIRCULAR CONNECTOR CONTACT, SOCKET, CRIMP, 18 AWG, 16 AWG, G SERIES, M SERIES AND CPC CONNECTORS
Description
General part information
Circular Plastic Connectors Series 1 Series

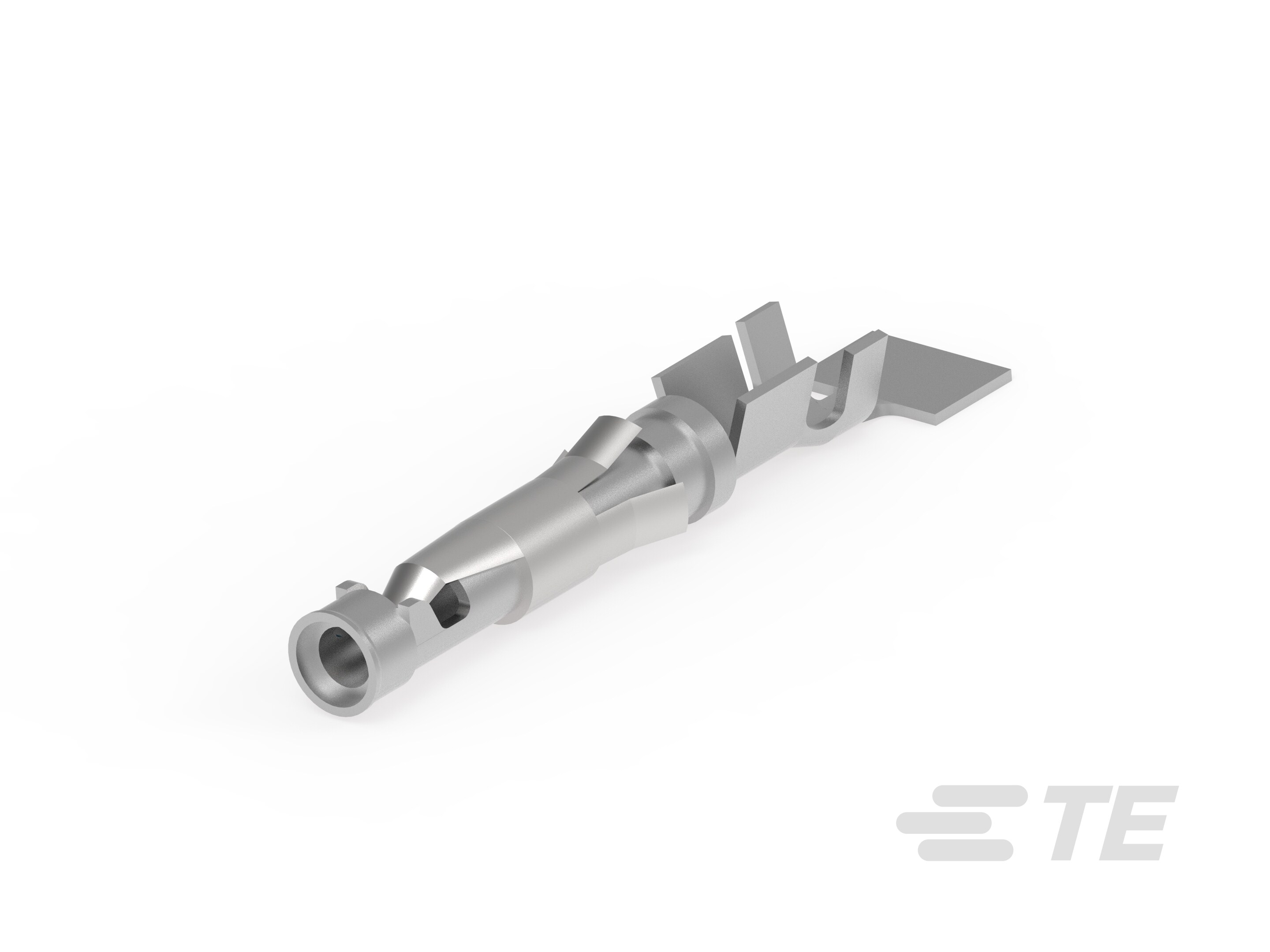

The 66101-2 is a Type III+ Socket Signal Contact made of brass with tin-lead finish and lead crimp termination. This contact accepts 18 to 16AWG discrete wire and can be used with G series, M series and CPC connectors.
Technical Specifications
Parameters and characteristics for this part
| Specification | 66101-2 |
|---|---|
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 50 µin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
