1-1418463-9

Active

TE Connectivity AMP Connectors

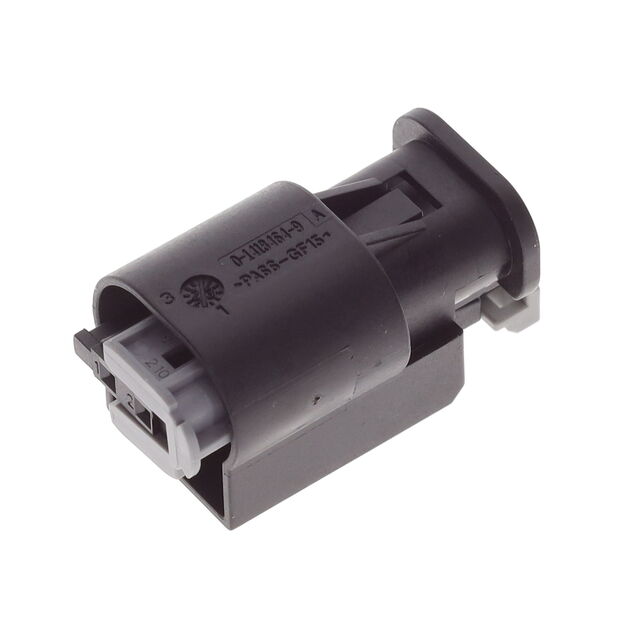

2POS,MQS,SOCK. HSG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

2POS,MQS,SOCK. HSG

Technical Specifications

Parameters and characteristics for this part

Specification	1-1418463-9

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	4 mm
Pitch [x]	0.157 in

2POS,MQS,SOCK. HSG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch [x]	Pitch [x]	Fastening Type	Connector Type	Contact Termination	Color	Number of Rows	Contact Type	Insulation Material	Number of Positions
TE Connectivity AMP Connectors 1-1418463-9	-40 °C	120 °C	Free Hanging (In-Line)	4 mm	0.157 in	Latch Holder	Receptacle	Crimp	Black	1	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.157" (4.00mm)

Technical documentation and resources
