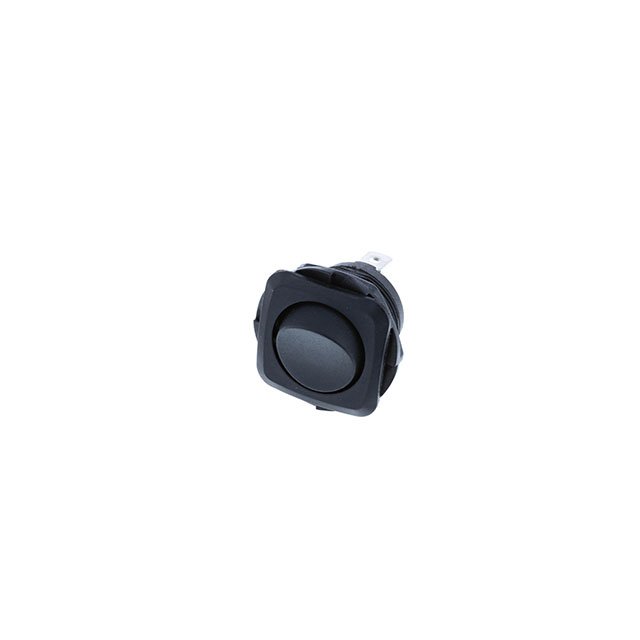

RB1-1F-DC-2-B

Active

Switch Components

SWITCH ROCKER SPDT 10A 125V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPDT 10A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RB1-1F-DC-2-B	RB1-1F Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round	Round
Circuit	SPDT	SPDT
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	20 A, 16 A	16 - 20 A
Electrical Life	6000 Cycles	6000 Cycles
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 - -20 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	14 V	14 V

SWITCH ROCKER SPDT 10A 125V

Part	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Switch Function	Mounting Type	Circuit	Voltage Rating - DC	Color - Actuator/Cap	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Actuator Marking	Electrical Life	Termination Style
Switch Components RB1-1F-DC-2-B	16 A, 20 A	125 V	Round	On-Off-On	Panel Mount, Threaded Body with Nut	SPDT	14 V	Black	10000 Steps	-25 °C	85 °C	20.2 mm	No Marking	6000 Cycles	Quick Connect - 0.187" (4.7mm)
Switch Components RB1-1F-AC-2-B	16 A	125 V	Round	On-Off-On	Panel Mount, Threaded Body with Nut	SPDT		Black		-20 C	85 °C	20.2 mm	No Marking		Quick Connect - 0.187" (4.7mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.75

General part information

Rocker Switch SPDT 16 (AC), 20 (DC) 125 V Panel Mount, Threaded Body with Nut
