LDW120-48P

Active

Bel Power Solutions

AC/DC DIN RAIL SUPPLY 48V 120W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC DIN RAIL SUPPLY 48V 120W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LDW120-48P	LDW120 Series

AC Voltage - Input [Max]	2 Phase, 550 VAC	2 - 550 Phase
AC Voltage - Input [Min]	187 VAC, 1 Phase	1 - 187 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	2.5 A	2.5 - 5 A
DC Voltage - Input (Max) [Max]	725 V	725 V
DC Voltage - Input (Min) [Min]	250 V	250 V
Efficiency	86 %	86 - 88 %
Features	Load Sharing, IP20, Adjustable Output	Adjustable Output, IP20, Load Sharing
Input Type	AC or DC	AC or DC
Number of Outputs	1	1
Size / Dimension [x]	4.33 in	4.33 in
Size / Dimension [x]	110 mm	110 mm
Size / Dimension [y]	40 mm	40 mm
Size / Dimension [y]	1.57 "	1.57 "
Size / Dimension [z]	115 mm	115 mm
Size / Dimension [z]	4.53 "	4.53 "
Voltage - Isolation	4.2 kV	4.2 kV
Voltage - Output 1	48 V	24 - 48 V

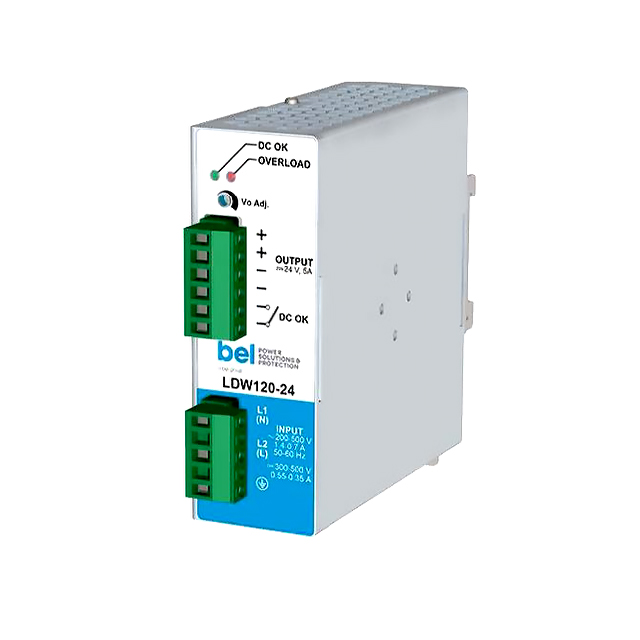

AC/DC POWER SUPPLY SINGLE-OUT 24V 5A 120W 9-PIN

Part	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Input Type	Applications	Voltage - Isolation	Current - Output (Max) [Max]	Features	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs
Bel Power Solutions LDW120-24	250 V	725 V	AC or DC	ITE (Commercial)	4.2 kV	5 A	Adjustable Output, IP20	88 %	1 Phase, 187 VAC	2 Phase, 550 VAC	24 V	115 mm	4.33 in	4.53 "	40 mm	1.57 "	110 mm	1
Bel Power Solutions LDW120-48P	250 V	725 V	AC or DC	ITE (Commercial)	4.2 kV	2.5 A	Adjustable Output, IP20, Load Sharing	86 %	1 Phase, 187 VAC	2 Phase, 550 VAC	48 V	115 mm	4.33 in	4.53 "	40 mm	1.57 "	110 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	15	$ 209.27

General part information

AC/DC DIN RAIL SUPPLY 48V 120W

Technical documentation and resources

No documents available
