TLE9180D32QKXUMA1
ActiveIC GATE DRVR HALF-BRIDGE 64LQFP
Deep-Dive with AI
Search across all available documentation for this part.
TLE9180D32QKXUMA1
ActiveIC GATE DRVR HALF-BRIDGE 64LQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE9180D32QKXUMA1 |
|---|---|
| Channel Type | 3-Phase |
| Current - Peak Output (Source, Sink) | 2 A |
| Driven Configuration | Half-Bridge |
| Gate Type | N-Channel MOSFET |
| Mounting Type | Surface Mount |
| Number of Drivers | 6 |

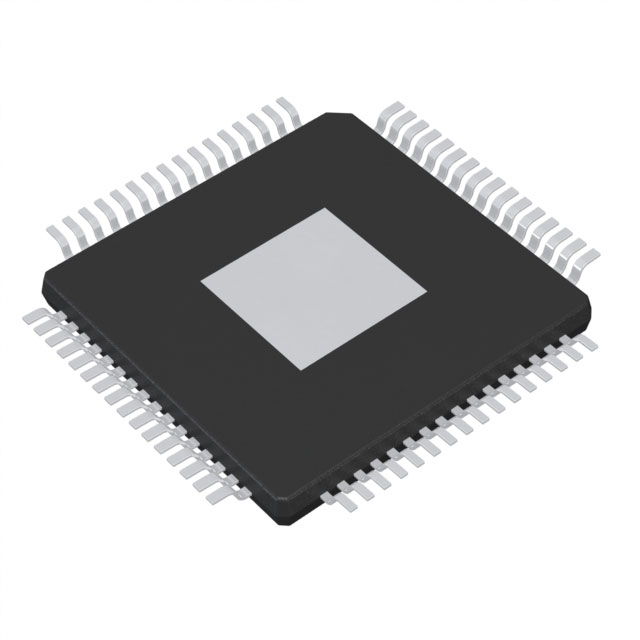

| Package / Case | 64-LQFP Exposed Pad |
| Rise / Fall Time (Typ) [custom] | 35 ns |
| Rise / Fall Time (Typ) [custom] | 35 ns |
| Voltage - Supply [Max] | 60 V |
| Voltage - Supply [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.13 | |
| Digi-Reel® | 1 | $ 7.13 | ||
| Tape & Reel (TR) | 1900 | $ 4.05 | ||
Description
General part information
TLE9180 Series
The MOTIX™ TLE9180D-32QK is an advanced gate driver IC dedicated to control 6 external N-channel MOSFETs forming an inverter for high current 3 phase motor drives application in the automotive sector. Three integrated current sense amplifiers for shunt signal conditioning are integrated. The IC can operate at 12V, 24V and 48V battery voltage domains. Thanks to the powerful driver stage with typ. 2 A output current per channel, the 3-phase gate driver can be used in a wide range of applications. This device is developed in accordance with ISO26262 and Infineon standard development process to support ASIL-C rated safety goals which are described in the safety analysis summary report.
Documents
Technical documentation and resources
No documents available
