967646-1
ActiveTE Connectivity AMP Connectors

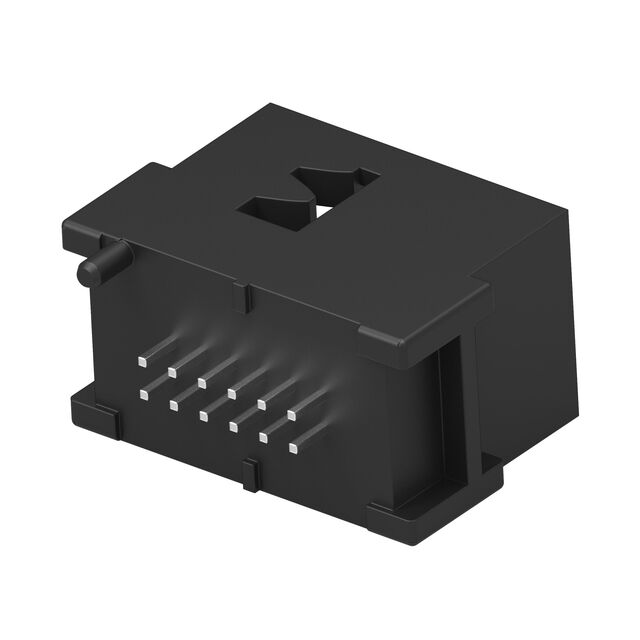

CONN HEADER VERT 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
967646-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 967646-1 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 20.2 mm |
| Insulation Height | 0.795 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.26 | |
| 10 | $ 2.01 | |||
| 100 | $ 1.82 | |||
| 1428 | $ 1.47 | |||
| 5712 | $ 1.30 | |||
967646 Series
CONN HEADER VERT 12POS 2.54MM
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Connector Type | Mounting Type | Number of Rows | Contact Type | Contact Finish - Post | Applications | Termination | Insulation Height | Insulation Height | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Shrouding | Style | Contact Shape | Insulation Material | Insulation Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Length - Post [x] | Contact Length - Post | Number of Positions | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 967646-1 | 2.54 mm | 0.1 in | Header | Through Hole | 2 | Male Pin | Tin | Automotive | Solder | 20.2 mm | 0.795 in | Board Guide | 78.7 µin | 2 µm | 0.1 in | 2.54 mm | Shrouded - 4 Wall | Board to Board, Cable | Circular | Polyamide (PA66), Nylon 6/6, Glass Filled | Black | Copper Alloy | 85 °C | -40 °C | Friction Lock | 0.11 in | 2.79 mm | 12 | All |
