Connectors, Interconnects

967646-1

Active

TE Connectivity Raychem Cable Protection

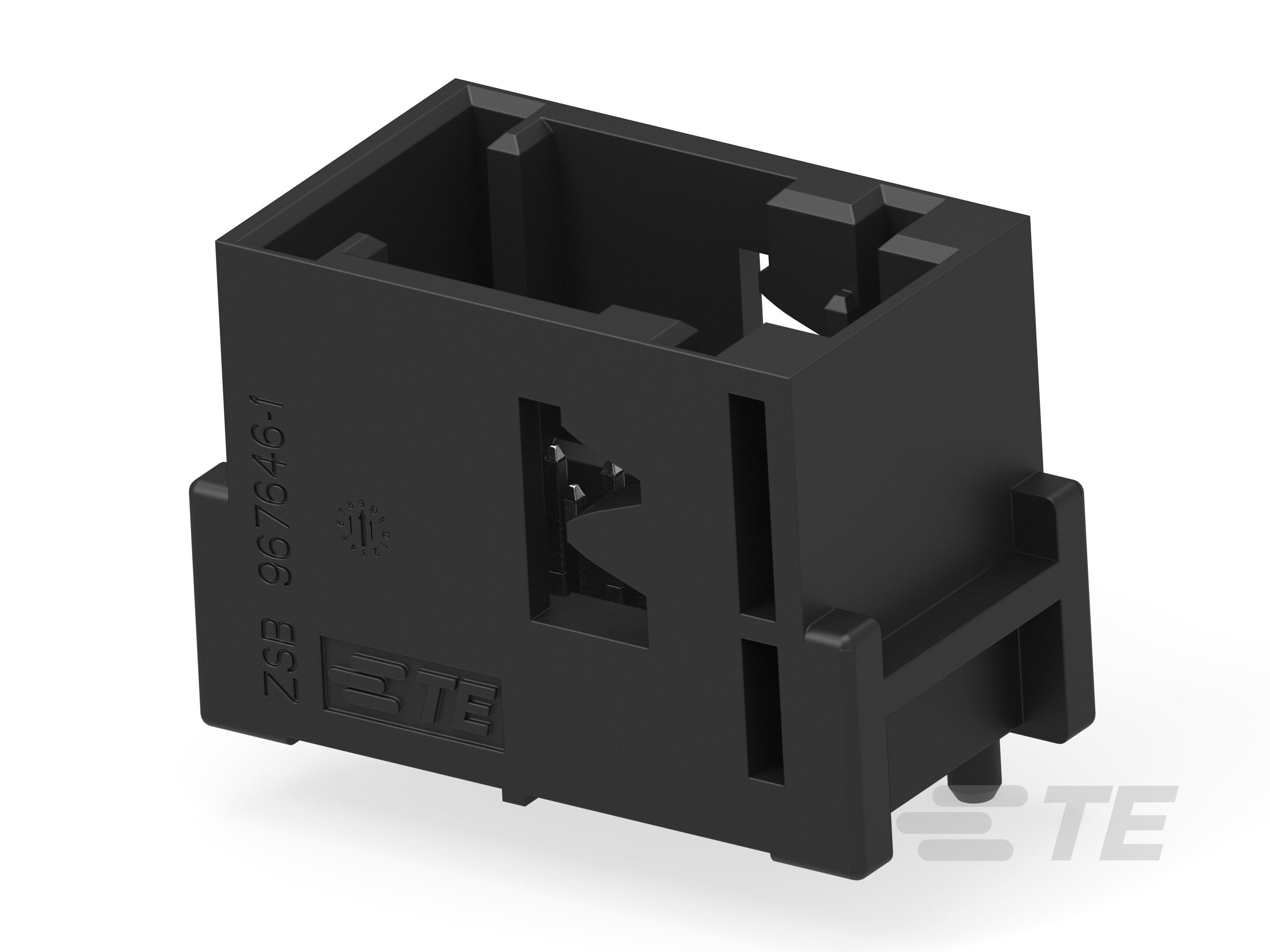

CONN HEADER VERT 12POS 2.54MM

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 12POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	967646-1

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Board Guide
Insulation Color	Black
Insulation Height	20.2 mm
Insulation Height	0.795 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Mounting Type	Number of Rows	Contact Type	Contact Finish - Post	Applications	Termination	Insulation Height	Insulation Height	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Shrouding	Style	Contact Shape	Insulation Material	Insulation Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Number of Positions Loaded
TE Connectivity Raychem Cable Protection 967646-1	2.54 mm	0.1 in	Header	Through Hole	2	Male Pin	Tin	Automotive	Solder	20.2 mm	0.795 in	Board Guide	78.7 µin	2 µm	0.1 in	2.54 mm	Shrouded - 4 Wall	Board to Board Cable	Circular	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	Copper Alloy	85 °C	-40 °C	Friction Lock	0.11 in	2.79 mm	12	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 12 position 0.100" (2.54mm)
