3SF12141KC051BA1

Active

Siemens

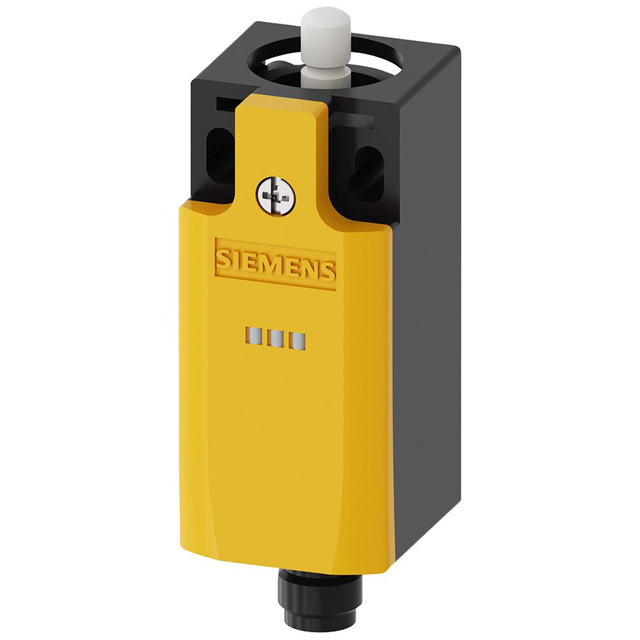

SWITCH LIMIT METAL PLUNGER 2NC

Search across all available documentation for this part.

Active

Siemens

SWITCH LIMIT METAL PLUNGER 2NC

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Operating Force	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Mounting Type	Circuit	Ingress Protection	Actuator Type
Siemens 3SF12141KC051BA1	Connector	2039 gf	15000000 Cycles	-25 °C	60 °C	On-Mom	Chassis Mount	DPST-NC	IP66/IP67	Round (Pin Plunger)
Siemens 3SF12141LC051BA1	Connector	2039 gf	15000000 Cycles	-25 °C	60 °C	On-Mom	Chassis Mount	DPST-NC	IP66/IP67	Round (Pin Plunger)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 334.59

General part information

Switch DPST-NC Chassis Mount

Technical documentation and resources
