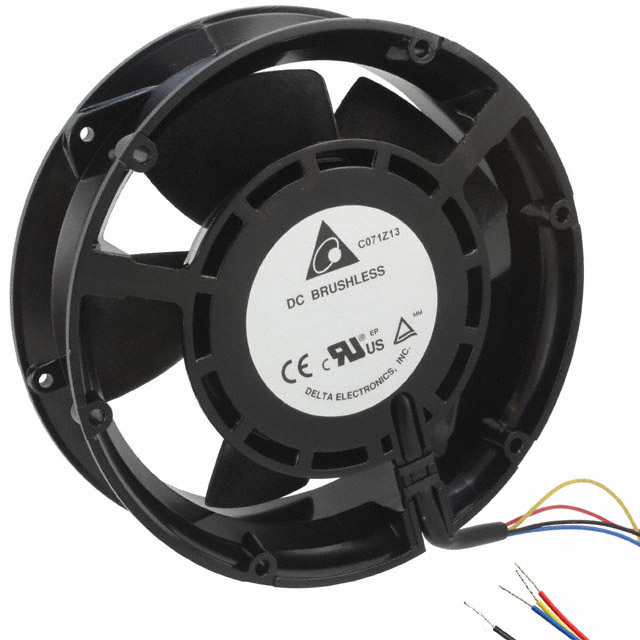

TDA1748AG

Obsolete

Delta Electronics

FAN AXIAL 172X50.8MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 172X50.8MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	TDA1748AG

Air Flow	413 CFM
Air Flow	11.56 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.85 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	71 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	88.8 W
RPM	5400 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Static Pressure	702.5 Pa
Static Pressure	2.82 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	30 VDC
Weight	1.8 lb
Weight	800 g
Width [y]	2 "

FAN AXIAL 172X50.8MM 48VDC WIRE

Part	Material - Frame	Voltage - Rated [custom]	Air Flow	Air Flow	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Features	Size / Dimension	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Material - Blade	Approval Agency	Power (Watts)	Static Pressure	Static Pressure	Current Rating (Amps)	Bearing Type	RPM	Termination	Noise	Weight	Weight	Width [y]
Delta Electronics TDA1748AG	Aluminum	48 VDC	413 CFM	11.56 m³/min	80000 Hrs	60 V	30 VDC	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Round	172 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	CE, CSA, UL, VDE	88.8 W	702.5 Pa	2.82 in H2O	1.85 A	Ball	5400 RPM	4 Wire Leads	71 dB(A)	1.8 lb	800 g	2 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Round - 172mm Dia Ball 413.0 CFM (11.56m³/min) 4 Wire Leads
