8761MN 008100

Active

Belden Inc.

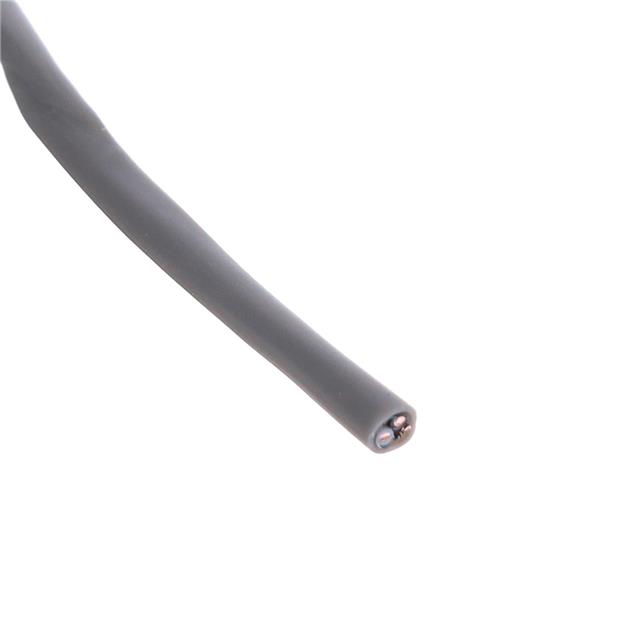

MULTIPAIR CABLE, SPACEMAKER, SHIELDED, 1 PAIR, 22 AWG, 100 FT, 30.5 M

Search across all available documentation for this part.

Active

Belden Inc.

MULTIPAIR CABLE, SPACEMAKER, SHIELDED, 1 PAIR, 22 AWG, 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	8761MN 008100

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.135 in
Jacket (Insulation) Diameter [diameter]	3.43 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Cable Type	Ratings	Voltage	Wire Gauge	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Conductor Strand [custom]	Conductor Strand	Shield Coverage	Shield Type	Conductor Insulation	Length [x]	Length [x]	Conductor Material	Number of Conductors	Length	Length
Belden Inc. 8761MN 006100	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	0.135 in	3.43 mm	0.406 mm	0.016 in	Aluminum	Multi-Conductor	UL Style 2937	300 V	22 AWG	Blue	-20 C	80 C	Drain Wire	19 Strands	34 AWG	100 %	Foil	Polypropylene (PP)	30.5 m	100 ft	Copper Tinned	2
Belden Inc. 8761MN 008100	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	0.135 in	3.43 mm	0.406 mm	0.016 in	Aluminum	Multi-Conductor			22 AWG	Gray	-20 C	80 C	Drain Wire	19 Strands	34 AWG	100 %	Foil	Polypropylene (PP)	30.5 m	100 ft	Copper Tinned	2
Belden Inc. 8761MN 0061000	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	0.135 in	3.43 mm	0.406 mm	0.016 in	Aluminum	Multi-Conductor	UL Style 2937	300 V	22 AWG	Blue	-20 C	80 C	Drain Wire	19 Strands	34 AWG	100 %	Foil	Polypropylene (PP)			Copper Tinned	2	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Gray 22 AWG Foil 100.0' (30.5m)
