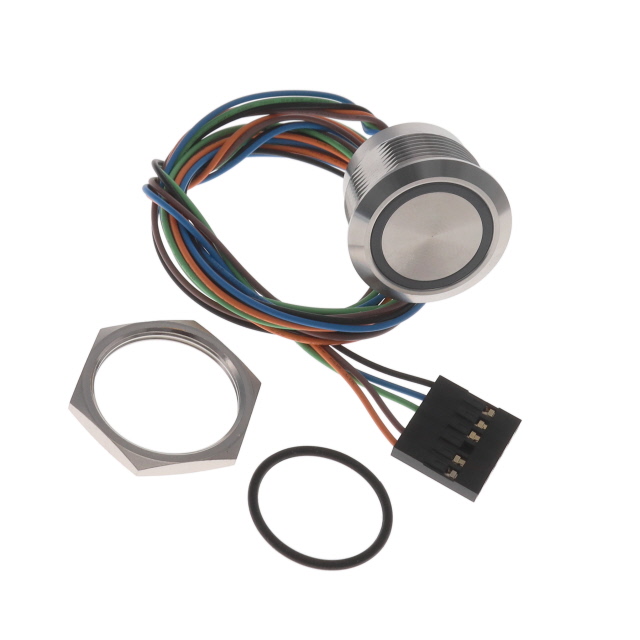

AVC22LS16FE03T5A04

Active

TE Connectivity Raychem Cable Protection

PUSHBUTTON SWITCH, SPST, ON-OFF, 1A, 24VDC, WIRE TERMINAL, PANEL MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

PUSHBUTTON SWITCH, SPST, ON-OFF, 1A, 24VDC, WIRE TERMINAL, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	AVC22LS16FE03T5A04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Electrical Life	50000000 Cycles
Illumination Type, Color [custom]	Blue/Green
Illumination Type, Color [custom]	LED
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	22.2 mm
Switch Function	Off-On
Type	Illuminated, Anti-Vandal, Capacitive
Voltage Rating - DC	24 V

Part	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Ingress Protection	Mechanical Life	Color - Actuator/Cap	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Circuit	Electrical Life	Switch Function	Voltage Rating - DC	Actuator Type	Actuator Marking	Type	Mounting Type
TE Connectivity Raychem Cable Protection AVC22LS04FE13T5A04	22.2 mm	1 A	IP68 - Dust Tight Waterproof	50000000 Cycles	Silver	Blue/Green	LED	SPST	50000000 Cycles	Off-On	24 V	Button Flush Round	No Marking	Anti-Vandal Capacitive Illuminated	Panel Mount Front
TE Connectivity Raychem Cable Protection AVC22LS16FE03T5A04	22.2 mm	1 A	IP68 - Dust Tight Waterproof	50000000 Cycles	Silver	Blue/Green	LED	SPST	50000000 Cycles	Off-On	24 V	Button Flush Round	No Marking	Anti-Vandal Capacitive Illuminated	Panel Mount Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Capacitive, Anti-Vandal, Illuminated Panel Mount, Front
