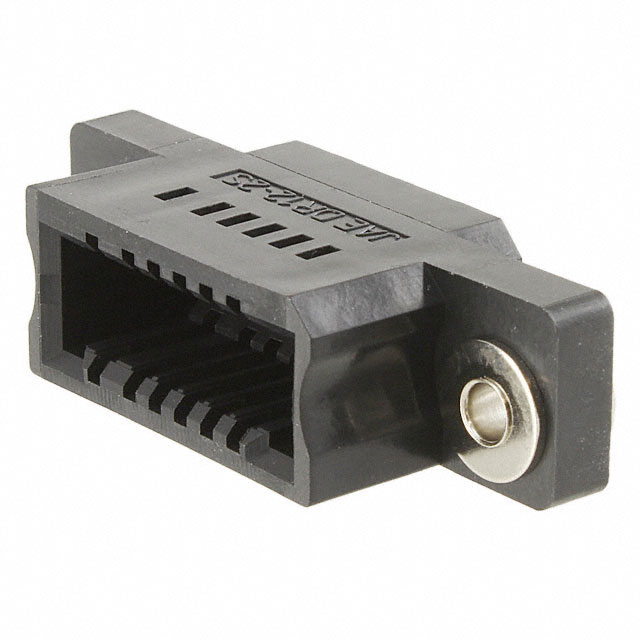

DR-12-2SC-F0R
ActiveJAE Electronics
CONN RCPT HSG 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DR-12-2SC-F0R
ActiveJAE Electronics
CONN RCPT HSG 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DR-12-2SC-F0R |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.52 | |
| 10 | $ 2.29 | |||
| 25 | $ 2.17 | |||
| 40 | $ 2.12 | |||
| 80 | $ 2.02 | |||
| 230 | $ 1.77 | |||
| 500 | $ 1.72 | |||
| 1000 | $ 1.46 | |||
| 2500 | $ 1.36 | |||
Description
General part information
DR-12-2S Series
12 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
